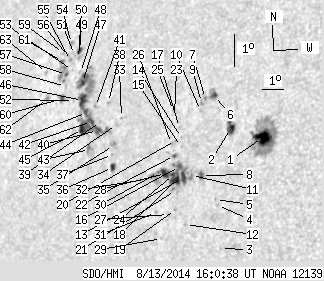

SDO HMI 2014-08-13 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.41 | 322.16 | 57.57 | 240.70 | 13.71 | 54.42 | -48.65 | 77.43 | 0.7480 | -57.4 | 77.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-13 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.99 | 75.28 | 8.17 | 51.26 | 13.86 | 59.57 | -43.50 | 76.73 | 0.6890 | -972.5 | -414.3 | |
| 6.49 | 9.29 | 4.53 | 6.48 | 14.03 | 58.13 | -44.95 | 76.67 | 0.7067 | -684.1 | -440.3 | |
| 0.00 | 1.08 | 0.00 | 0.75 | 10.36 | 58.47 | -44.60 | 81.86 | 0.7001 | -498.0 | -410.0 | |
| 0.00 | 0.81 | 0.00 | 0.57 | 11.65 | 58.09 | -44.98 | 80.04 | 0.7052 | -661.0 | -557.7 | |
| 0.00 | 0.99 | 0.00 | 0.69 | 11.83 | 57.97 | -45.11 | 79.80 | 0.7068 | -470.0 | -427.1 | |
| 2.07 | 7.21 | 1.47 | 5.13 | 14.97 | 57.16 | -45.91 | 75.46 | 0.7191 | 339.3 | -175.5 | |
| 0.00 | 1.35 | 0.00 | 0.97 | 14.85 | 56.79 | -46.29 | 75.68 | 0.7234 | -608.0 | -556.6 | |
| 1.71 | 3.43 | 1.21 | 2.43 | 12.50 | 57.20 | -45.88 | 78.90 | 0.7165 | -869.4 | -686.7 | |
| 0.00 | 1.89 | 0.00 | 1.36 | 14.71 | 56.64 | -46.43 | 75.88 | 0.7249 | -699.0 | -654.8 | |
| 0.00 | 1.44 | 0.00 | 1.03 | 14.47 | 56.66 | -46.41 | 76.22 | 0.7244 | -446.0 | -428.4 | |
| 0.00 | 3.79 | 0.00 | 2.70 | 12.47 | 56.75 | -46.32 | 78.98 | 0.7217 | -804.0 | -697.8 | |
| 0.00 | 1.08 | 0.00 | 0.77 | 10.97 | 56.81 | -46.26 | 81.06 | 0.7204 | -581.0 | -497.8 | |
| 4.78 | 47.69 | 3.43 | 34.55 | 12.38 | 56.41 | -46.66 | 79.12 | 0.7257 | -831.2 | -386.1 | |
| 0.00 | 0.90 | 0.00 | 0.65 | 13.58 | 56.02 | -47.05 | 77.50 | 0.7310 | -549.0 | -486.6 | |
| 0.00 | 0.63 | 0.00 | 0.46 | 13.31 | 56.09 | -46.98 | 77.87 | 0.7300 | -535.0 | -540.3 | |
| 2.07 | -13.00 | 1.49 | -13.00 | 12.70 | 56.15 | -46.92 | 78.70 | 0.7289 | -625.1 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.46 | 13.88 | 55.85 | -47.22 | 77.11 | 0.7332 | -525.0 | -408.1 | |
| 7.30 | -13.00 | 5.27 | -13.00 | 12.26 | 56.07 | -47.00 | 79.31 | 0.7296 | -659.3 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.78 | 11.38 | 56.27 | -46.80 | 80.50 | 0.7269 | -572.0 | -544.5 | |
| 0.00 | 0.99 | 0.00 | 0.72 | 13.47 | 55.78 | -47.29 | 77.68 | 0.7338 | -574.0 | -489.8 | |
| 0.00 | 2.70 | 0.00 | 1.95 | 11.96 | 56.14 | -46.93 | 79.72 | 0.7286 | -608.0 | -555.0 | |
| 0.81 | 1.80 | 0.59 | 1.31 | 13.01 | 55.85 | -47.22 | 78.29 | 0.7327 | -567.7 | -471.2 | |
| 0.00 | 0.54 | 0.00 | 0.40 | 14.25 | 55.52 | -47.55 | 76.63 | 0.7374 | -400.0 | -259.8 | |
| 2.25 | -13.00 | 1.63 | -13.00 | 12.43 | 55.94 | -47.13 | 79.08 | 0.7312 | -594.3 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.99 | 14.37 | 55.44 | -47.63 | 76.48 | 0.7384 | -447.0 | -363.9 | |
| 0.00 | 1.17 | 0.00 | 0.85 | 13.36 | 55.62 | -47.45 | 77.83 | 0.7355 | -530.0 | -439.2 | |
| 0.00 | 1.26 | 0.00 | 0.91 | 11.21 | 55.99 | -47.08 | 80.76 | 0.7301 | -510.0 | -448.1 | |
| 5.59 | -13.00 | 4.07 | -13.00 | 12.43 | 55.57 | -47.50 | 79.10 | 0.7355 | -494.7 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.52 | 10.46 | 55.82 | -47.25 | 81.79 | 0.7319 | -381.0 | -307.2 | |
| 0.27 | -13.00 | 0.20 | -13.00 | 12.44 | 55.25 | -47.82 | 79.11 | 0.7393 | -242.7 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.86 | 11.22 | 55.39 | -47.68 | 80.76 | 0.7371 | -411.0 | -343.8 | |
| 0.00 | 0.63 | 0.00 | 0.47 | 12.18 | 54.70 | -48.37 | 79.50 | 0.7454 | -167.0 | -172.9 | |
| 0.00 | 0.81 | 0.00 | 0.62 | 13.95 | 53.08 | -50.00 | 77.24 | 0.7645 | -217.0 | -155.4 | |
| 0.00 | 1.53 | 0.00 | 1.18 | 13.72 | 52.90 | -50.17 | 77.55 | 0.7663 | 640.0 | 581.8 | |
| 0.00 | 4.87 | 0.00 | 3.73 | 13.08 | 52.94 | -50.14 | 78.39 | 0.7655 | 744.0 | 648.2 | |
| 2.34 | 4.42 | 1.79 | 3.38 | 12.41 | 53.07 | -50.00 | 79.26 | 0.7638 | 581.5 | 472.8 | |
| 0.00 | 0.81 | 0.00 | 0.62 | 12.80 | 52.96 | -50.11 | 78.75 | 0.7651 | 520.0 | 479.7 | |
| 0.00 | 1.17 | 0.00 | 0.91 | 14.35 | 52.31 | -50.76 | 76.77 | 0.7730 | 680.0 | 601.1 | |
| 0.00 | 0.99 | 0.00 | 0.77 | 13.75 | 52.10 | -50.97 | 77.57 | 0.7750 | 658.0 | 521.8 | |
| 3.61 | 88.72 | 2.82 | 70.38 | 13.46 | 52.03 | -51.04 | 77.94 | 0.7755 | 746.5 | 596.8 | |
| 0.00 | 1.17 | 0.00 | 0.92 | 14.18 | 51.72 | -51.36 | 77.04 | 0.7793 | 759.0 | 652.2 | |
| 2.89 | -40.00 | 2.27 | -40.00 | 13.71 | 51.66 | -51.41 | 77.65 | 0.7796 | 828.8 | 999999 | |
| 0.00 | 6.13 | 0.00 | 4.81 | 12.86 | 51.81 | -51.26 | 78.74 | 0.7776 | 646.0 | 499.8 | |
| 2.43 | -40.00 | 1.93 | -40.00 | 13.96 | 51.33 | -51.74 | 77.35 | 0.7833 | 773.0 | 999999 | |
| 4.96 | -40.00 | 3.93 | -40.00 | 13.43 | 51.29 | -51.78 | 78.03 | 0.7834 | 612.1 | 999999 | |
| 8.29 | -40.00 | 6.62 | -40.00 | 14.30 | 51.01 | -52.06 | 76.93 | 0.7867 | 729.5 | 999999 | |
| 2.07 | -40.00 | 1.66 | -40.00 | 14.85 | 50.83 | -52.24 | 76.25 | 0.7890 | 824.3 | 999999 | |
| 0.00 | 1.35 | 0.00 | 1.09 | 15.14 | 50.63 | -52.44 | 75.89 | 0.7913 | 348.0 | 406.3 | |
| 1.98 | 3.70 | 1.61 | 3.00 | 15.80 | 50.34 | -52.73 | 75.08 | 0.7947 | 563.3 | 517.4 | |
| 0.00 | 1.35 | 0.00 | 1.10 | 15.55 | 50.38 | -52.70 | 75.39 | 0.7941 | 679.0 | 604.7 | |
| 0.00 | 2.98 | 0.00 | 2.43 | 15.66 | 50.13 | -52.94 | 75.28 | 0.7967 | 527.0 | 467.2 | |
| 0.00 | 1.08 | 0.00 | 0.87 | 14.26 | 50.56 | -52.51 | 77.00 | 0.7914 | 288.0 | 176.1 | |
| 0.00 | 0.27 | 0.00 | 0.22 | 15.16 | 50.20 | -52.87 | 75.89 | 0.7957 | 540.0 | 521.0 | |
| 0.00 | 1.53 | 0.00 | 1.26 | 15.97 | 49.85 | -53.22 | 74.90 | 0.7998 | 412.0 | 329.5 | |
| 0.00 | 1.08 | 0.00 | 0.89 | 15.46 | 49.99 | -53.08 | 75.54 | 0.7980 | 678.0 | 657.4 | |
| 0.00 | 1.98 | 0.00 | 1.63 | 15.57 | 49.84 | -53.23 | 75.41 | 0.7996 | 472.0 | 438.6 | |
| 0.72 | 12.71 | 0.59 | 10.45 | 15.02 | 49.94 | -53.13 | 76.10 | 0.7982 | 679.4 | 496.8 | |
| 0.00 | 1.44 | 0.00 | 1.18 | 14.65 | 50.02 | -53.06 | 76.55 | 0.7973 | 579.0 | 466.6 | |
| 0.00 | 1.53 | 0.00 | 1.27 | 15.64 | 49.55 | -53.52 | 75.35 | 0.8025 | 306.0 | 230.1 | |
| 1.89 | 3.79 | 1.55 | 3.10 | 14.27 | 49.99 | -53.08 | 77.02 | 0.7974 | 600.2 | 434.7 | |
| 0.90 | 2.16 | 0.74 | 1.79 | 15.39 | 49.59 | -53.48 | 75.65 | 0.8020 | 421.6 | 314.1 | |
| 0.00 | 2.52 | 0.00 | 2.10 | 14.21 | 49.22 | -53.86 | 77.15 | 0.8051 | 492.0 | 364.4 | |
| 0.00 | 1.17 | 0.00 | 0.98 | 14.98 | 48.88 | -54.19 | 76.20 | 0.8088 | 299.0 | 263.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
