SDO HMI 2014-08-13 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.82 | 34.07 | 11.37 | 35.29 | 13.74 | 165.24 | 62.17 | 282.11 | 0.8801 | -185.9 | -146.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-13 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

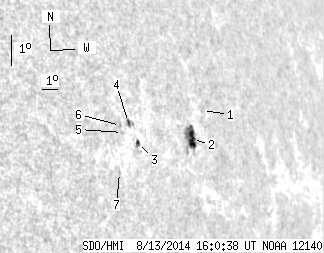

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 1.71 | 14.32 | 167.46 | 64.39 | 282.76 | 0.8977 | 151.0 | 120.1 | |
| 8.66 | 21.73 | 9.29 | 23.25 | 13.53 | 166.34 | 63.27 | 281.87 | 0.8892 | -579.8 | -495.9 | |
| 1.08 | 2.70 | 1.04 | 2.61 | 13.78 | 162.82 | 59.75 | 282.17 | 0.8602 | 336.0 | 323.3 | |
| 1.08 | 4.69 | 1.04 | 4.50 | 14.43 | 162.54 | 59.47 | 282.93 | 0.8579 | 558.2 | 389.1 | |
| 0.00 | 1.08 | 0.00 | 1.02 | 14.17 | 162.05 | 58.98 | 282.63 | 0.8536 | 628.0 | 499.7 | |
| 0.00 | 1.35 | 0.00 | 1.28 | 14.39 | 162.03 | 58.95 | 282.89 | 0.8534 | 497.0 | 437.7 | |
| 0.00 | 0.99 | 0.00 | 0.92 | 12.99 | 161.40 | 58.33 | 281.25 | 0.8476 | 323.0 | 313.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
