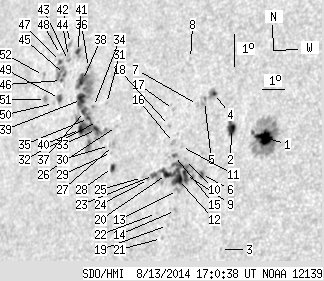

SDO HMI 2014-08-13 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.56 | 330.87 | 59.45 | 244.39 | 13.81 | 54.41 | -48.11 | 77.26 | 0.7420 | -31.0 | 58.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-13 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.51 | 76.27 | 10.46 | 51.47 | 13.87 | 59.62 | -42.89 | 76.63 | 0.6815 | -1052.2 | -371.6 | |
| 7.12 | 9.74 | 4.92 | 6.73 | 14.04 | 58.15 | -44.36 | 76.58 | 0.6997 | -682.5 | -441.9 | |
| 0.00 | 0.81 | 0.00 | 0.56 | 10.34 | 58.45 | -44.07 | 81.88 | 0.6935 | -536.0 | -414.6 | |
| 1.53 | 6.13 | 1.08 | 4.32 | 15.04 | 57.14 | -45.38 | 75.29 | 0.7130 | 467.3 | -73.2 | |
| 0.00 | 3.97 | 0.00 | 2.81 | 14.77 | 56.76 | -45.75 | 75.73 | 0.7170 | -619.0 | -566.8 | |
| 1.89 | 3.25 | 1.33 | 2.28 | 12.55 | 57.18 | -45.34 | 78.80 | 0.7101 | -881.5 | -709.4 | |
| 0.00 | 1.80 | 0.00 | 1.28 | 14.65 | 56.48 | -46.04 | 75.92 | 0.7203 | -655.0 | -609.3 | |
| 0.00 | 0.63 | 0.00 | 0.46 | 16.02 | 55.76 | -46.75 | 74.13 | 0.7302 | -333.0 | -289.1 | |
| 6.58 | 57.69 | 4.67 | 41.29 | 12.49 | 56.48 | -46.04 | 78.93 | 0.7184 | -852.5 | -434.9 | |
| 0.00 | 1.62 | 0.00 | 1.15 | 12.94 | 56.37 | -46.15 | 78.31 | 0.7200 | -534.0 | -531.5 | |
| 0.00 | 1.26 | 0.00 | 0.90 | 13.32 | 56.10 | -46.42 | 77.80 | 0.7235 | -491.0 | -389.2 | |
| 6.13 | -9.00 | 4.37 | -9.00 | 12.31 | 56.20 | -46.32 | 79.19 | 0.7216 | -749.6 | 999999 | |
| 0.00 | 2.88 | 0.00 | 2.06 | 11.98 | 56.23 | -46.29 | 79.66 | 0.7211 | -685.0 | -627.4 | |
| 0.00 | 2.07 | 0.00 | 1.48 | 11.37 | 56.27 | -46.25 | 80.51 | 0.7203 | -761.0 | -597.3 | |
| 0.90 | 2.16 | 0.65 | 1.55 | 13.02 | 55.85 | -46.67 | 78.24 | 0.7262 | -589.7 | -477.7 | |
| 0.00 | 2.88 | 0.00 | 2.08 | 13.41 | 55.71 | -46.81 | 77.71 | 0.7281 | -602.0 | -463.8 | |
| 0.00 | 1.08 | 0.00 | 0.78 | 14.41 | 55.44 | -47.07 | 76.37 | 0.7320 | -483.0 | -411.2 | |
| 0.00 | 1.26 | 0.00 | 0.91 | 13.91 | 55.39 | -47.12 | 77.05 | 0.7322 | -399.0 | -312.4 | |
| 0.00 | 0.63 | 0.00 | 0.45 | 10.88 | 56.01 | -46.51 | 81.19 | 0.7232 | -475.0 | -370.1 | |
| 3.07 | -9.00 | 2.21 | -9.00 | 12.42 | 55.63 | -46.89 | 79.08 | 0.7284 | -547.6 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.71 | 10.47 | 55.82 | -46.70 | 81.77 | 0.7254 | -406.0 | -321.6 | |
| 0.00 | 0.63 | 0.00 | 0.46 | 11.21 | 55.44 | -47.07 | 80.76 | 0.7300 | -440.0 | -375.1 | |
| 1.89 | -9.00 | 1.38 | -9.00 | 12.34 | 55.05 | -47.47 | 79.22 | 0.7351 | -365.1 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.99 | 12.20 | 54.85 | -47.66 | 79.43 | 0.7373 | -315.0 | -223.9 | |
| 0.00 | 0.90 | 0.00 | 0.66 | 12.24 | 54.57 | -47.95 | 79.39 | 0.7406 | 291.0 | 215.0 | |
| 0.00 | 0.99 | 0.00 | 0.75 | 13.68 | 52.95 | -49.56 | 77.57 | 0.7596 | 658.0 | 583.5 | |
| 0.00 | 1.71 | 0.00 | 1.30 | 13.10 | 52.97 | -49.55 | 78.34 | 0.7590 | 719.0 | 653.4 | |
| 2.43 | 4.24 | 1.84 | 3.20 | 12.43 | 53.10 | -49.42 | 79.21 | 0.7573 | 607.7 | 507.2 | |
| 0.00 | 0.90 | 0.00 | 0.68 | 12.88 | 52.93 | -49.58 | 78.63 | 0.7593 | 628.0 | 551.9 | |
| 0.00 | 0.72 | 0.00 | 0.55 | 13.08 | 52.78 | -49.74 | 78.37 | 0.7611 | 668.0 | 598.1 | |
| 0.00 | 1.17 | 0.00 | 0.90 | 14.34 | 52.27 | -50.25 | 76.76 | 0.7675 | 688.0 | 615.7 | |
| 0.00 | 0.72 | 0.00 | 0.56 | 13.75 | 52.00 | -50.52 | 77.54 | 0.7700 | 652.0 | 569.9 | |
| 2.70 | 100.15 | 2.09 | 78.44 | 13.51 | 52.03 | -50.49 | 77.85 | 0.7696 | 795.7 | 573.5 | |
| 0.00 | 0.99 | 0.00 | 0.77 | 14.19 | 51.67 | -50.85 | 76.99 | 0.7738 | 776.0 | 695.4 | |
| 1.62 | -33.00 | 1.27 | -33.00 | 13.81 | 51.54 | -50.98 | 77.50 | 0.7750 | 878.3 | 999999 | |
| 0.00 | 2.25 | 0.00 | 1.78 | 15.35 | 51.04 | -51.48 | 75.55 | 0.7813 | 693.0 | 619.5 | |
| 2.88 | -33.00 | 2.27 | -33.00 | 14.00 | 51.28 | -51.24 | 77.26 | 0.7779 | 771.0 | 999999 | |
| 7.48 | -33.00 | 5.93 | -33.00 | 14.93 | 50.88 | -51.64 | 76.10 | 0.7827 | 793.7 | 999999 | |
| 7.93 | -33.00 | 6.27 | -33.00 | 14.35 | 51.02 | -51.50 | 76.83 | 0.7809 | 761.3 | 999999 | |
| 4.06 | -33.00 | 3.18 | -33.00 | 13.44 | 51.25 | -51.27 | 77.98 | 0.7780 | 649.9 | 999999 | |
| 1.89 | 4.33 | 1.52 | 3.47 | 15.78 | 50.32 | -52.19 | 75.06 | 0.7891 | 690.0 | 626.0 | |
| 0.00 | 2.79 | 0.00 | 2.27 | 15.99 | 49.88 | -52.64 | 74.83 | 0.7938 | 398.0 | 284.9 | |
| 0.00 | 1.44 | 0.00 | 1.17 | 15.47 | 49.97 | -52.55 | 75.48 | 0.7926 | 740.0 | 620.8 | |
| 0.00 | 1.26 | 0.00 | 1.02 | 15.59 | 49.92 | -52.59 | 75.33 | 0.7931 | 522.0 | 409.6 | |
| 0.72 | 13.25 | 0.58 | 10.76 | 15.03 | 49.92 | -52.60 | 76.04 | 0.7928 | 753.6 | 512.6 | |
| 0.72 | -45.00 | 0.58 | -45.00 | 14.84 | 49.83 | -52.69 | 76.29 | 0.7936 | 628.6 | 999999 | |
| 1.08 | 2.52 | 0.88 | 2.06 | 15.41 | 49.57 | -52.94 | 75.60 | 0.7966 | 397.8 | 283.6 | |
| 0.00 | 1.08 | 0.00 | 0.88 | 15.62 | 49.50 | -53.02 | 75.34 | 0.7975 | 241.0 | 118.4 | |
| 2.43 | 4.87 | 1.97 | 3.93 | 14.29 | 49.91 | -52.61 | 76.98 | 0.7924 | 593.3 | 419.3 | |
| 0.00 | 1.26 | 0.00 | 1.03 | 14.11 | 49.66 | -52.86 | 77.22 | 0.7950 | 255.0 | 212.2 | |
| 0.00 | 2.43 | 0.00 | 2.00 | 14.19 | 49.21 | -53.31 | 77.14 | 0.7996 | 568.0 | 418.4 | |
| 0.00 | 1.80 | 0.00 | 1.49 | 14.91 | 48.86 | -53.66 | 76.27 | 0.8035 | 256.0 | 253.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
