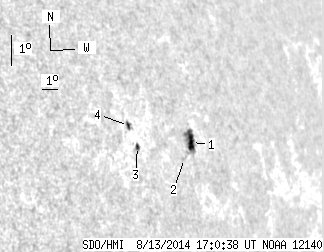

SDO HMI 2014-08-13 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.81 | 28.40 | 11.48 | 30.21 | 13.62 | 165.53 | 63.01 | 281.99 | 0.8869 | -310.7 | -296.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-13 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.84 | 19.74 | 8.58 | 21.56 | 13.53 | 166.36 | 63.84 | 281.88 | 0.8936 | -576.1 | -469.0 | |
| 0.00 | 2.07 | 0.00 | 2.22 | 13.10 | 165.66 | 63.14 | 281.39 | 0.8882 | -168.0 | -257.1 | |
| 1.44 | 3.07 | 1.41 | 3.01 | 13.76 | 162.83 | 60.31 | 282.13 | 0.8651 | 363.1 | 246.4 | |
| 1.53 | 3.52 | 1.49 | 3.42 | 14.44 | 162.56 | 60.04 | 282.92 | 0.8628 | 483.8 | 372.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
