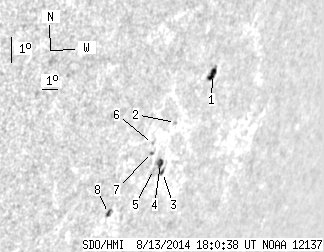

SDO HMI 2014-08-13 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.08 | 25.41 | 13.51 | 28.24 | -18.17 | 161.26 | 59.30 | 245.90 | 0.8968 | 398.0 | 254.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-13 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.50 | 8.83 | 6.29 | 10.10 | -16.29 | 162.78 | 60.82 | 248.38 | 0.9032 | 408.9 | 235.2 | |
| 0.00 | 1.08 | 0.00 | 1.19 | -17.69 | 161.16 | 59.19 | 246.40 | 0.8948 | 466.0 | 368.6 | |
| 1.17 | 2.88 | 1.32 | 3.24 | -19.35 | 161.27 | 59.31 | 244.67 | 0.8995 | 276.5 | 203.8 | |
| 3.52 | 5.68 | 3.90 | 6.29 | -19.02 | 160.95 | 58.99 | 244.91 | 0.8965 | 664.2 | 505.9 | |
| 0.00 | 1.26 | 0.00 | 1.39 | -19.18 | 160.61 | 58.65 | 244.63 | 0.8945 | 306.0 | 322.6 | |
| 0.00 | 0.81 | 0.00 | 0.87 | -18.26 | 160.04 | 58.08 | 245.42 | 0.8882 | 491.0 | 430.8 | |
| 0.36 | 1.44 | 0.39 | 1.56 | -18.57 | 160.15 | 58.18 | 245.13 | 0.8897 | 660.0 | 611.8 | |
| 1.53 | 3.43 | 1.61 | 3.60 | -20.44 | 158.60 | 56.63 | 242.59 | 0.8834 | -458.9 | -361.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
