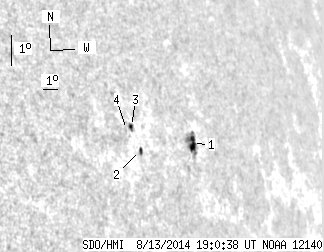

SDO HMI 2014-08-13 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.64 | 26.31 | 10.62 | 28.96 | 13.73 | 165.43 | 64.02 | 282.11 | 0.8946 | -254.3 | -233.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-13 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.94 | 19.20 | 7.89 | 21.80 | 13.58 | 166.36 | 64.95 | 281.94 | 0.9019 | -586.8 | -418.3 | |
| 1.08 | 2.70 | 1.10 | 2.74 | 13.72 | 162.79 | 61.38 | 282.08 | 0.8740 | 341.9 | 242.2 | |
| 1.62 | 3.24 | 1.63 | 3.26 | 14.49 | 162.56 | 61.15 | 282.96 | 0.8721 | 499.7 | 434.7 | |
| 0.00 | 1.17 | 0.00 | 1.16 | 14.43 | 162.20 | 60.79 | 282.90 | 0.8692 | 484.0 | 367.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
