SDO HMI 2014-08-13 20:01:23 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.54 | 5.04 | 0.27 | 2.51 | 7.10 | 106.85 | 6.00 | 275.54 | 0.1048 | -108.7 | -182.8 | |
|
previous
or next observation for the same group /

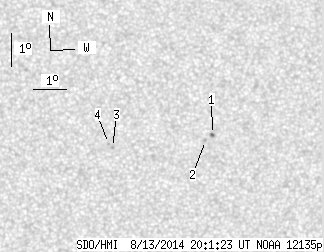

back to the solar disc SDO HMI 2014-08-13 20:01:23 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.54 | 1.98 | 0.27 | 0.99 | 7.25 | 108.02 | 7.17 | 275.94 | 0.1251 | -1142.7 | -890.3 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 7.08 | 107.80 | 6.95 | 274.62 | 0.1211 | -933.0 | -693.9 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 6.90 | 104.94 | 4.09 | 274.88 | 0.0714 | 1123.0 | 825.9 | |
| 0.00 | 0.81 | 0.00 | 0.40 | 7.02 | 104.82 | 3.97 | 276.78 | 0.0695 | 797.0 | 647.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
