SDO HMI 2014-08-13 20:01:23 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.72 | 25.78 | 12.05 | 28.89 | 13.73 | 165.37 | 64.52 | 282.10 | 0.8984 | -295.8 | -229.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-13 20:01:23 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

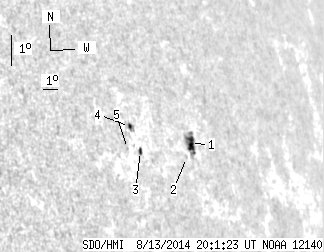

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.84 | 17.76 | 9.09 | 20.57 | 13.59 | 166.33 | 65.48 | 281.95 | 0.9057 | -589.1 | -428.3 | |
| 0.00 | 0.99 | 0.00 | 1.13 | 13.20 | 165.83 | 64.98 | 281.52 | 0.9021 | -303.0 | -409.0 | |
| 1.44 | 2.34 | 1.49 | 2.41 | 13.70 | 162.82 | 61.97 | 282.04 | 0.8788 | 266.8 | 285.9 | |
| 1.44 | 4.42 | 1.47 | 4.51 | 14.51 | 162.47 | 61.62 | 282.98 | 0.8760 | 489.6 | 373.4 | |
| 0.00 | 0.27 | 0.00 | 0.27 | 13.87 | 162.03 | 61.18 | 282.24 | 0.8724 | 384.0 | 379.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
