SDO HMI 2014-08-13 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.29 | 21.71 | 9.80 | 25.50 | -18.22 | 161.25 | 60.95 | 246.35 | 0.9082 | 341.5 | 315.8 | |
|
previous
or next observation for the same group /

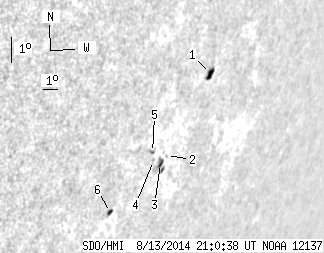

back to the solar disc SDO HMI 2014-08-13 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.69 | 7.12 | 5.68 | 8.63 | -16.27 | 162.79 | 62.49 | 248.87 | 0.9145 | 350.0 | 219.6 | |
| 0.00 | 0.90 | 0.00 | 1.07 | -18.79 | 161.29 | 60.99 | 245.78 | 0.9096 | 296.0 | 254.5 | |
| 1.98 | 7.75 | 2.33 | 9.12 | -19.03 | 161.04 | 60.74 | 245.45 | 0.9085 | 652.6 | 376.3 | |
| 0.00 | 1.26 | 0.00 | 1.45 | -18.87 | 160.49 | 60.18 | 245.44 | 0.9044 | 653.0 | 564.8 | |
| 0.00 | 1.71 | 0.00 | 1.95 | -18.58 | 160.25 | 59.95 | 245.68 | 0.9022 | 634.0 | 571.4 | |
| 1.62 | 2.97 | 1.79 | 3.28 | -20.41 | 158.68 | 58.38 | 243.23 | 0.8957 | -402.2 | -302.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
