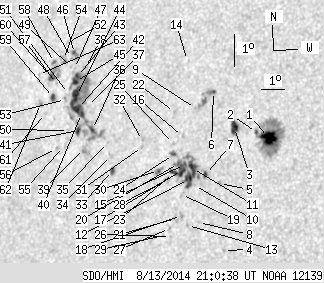

SDO HMI 2014-08-13 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.13 | 348.53 | 69.06 | 247.33 | 13.82 | 54.39 | -45.91 | 77.06 | 0.7165 | -20.3 | 35.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-13 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.51 | 78.24 | 9.47 | 51.02 | 13.90 | 59.64 | -40.67 | 76.29 | 0.6534 | -1148.7 | -448.3 | |
| 0.99 | -1.00 | 0.65 | -1.00 | 14.01 | 59.11 | -41.19 | 76.20 | 0.6602 | -462.7 | 999999 | |
| 6.40 | 8.38 | 4.27 | 5.59 | 14.10 | 58.17 | -42.13 | 76.21 | 0.6722 | -760.3 | -534.1 | |
| 0.00 | 1.53 | 0.00 | 1.01 | 10.34 | 58.44 | -41.87 | 81.82 | 0.6656 | -570.0 | -486.3 | |
| 0.00 | 2.34 | 0.00 | 1.57 | 12.35 | 57.91 | -42.40 | 78.84 | 0.6736 | -878.0 | -667.4 | |
| 0.99 | 11.72 | 0.67 | 8.01 | 15.13 | 57.02 | -43.28 | 74.88 | 0.6878 | 472.0 | -519.5 | |
| 1.53 | 4.06 | 1.03 | 2.74 | 12.58 | 57.27 | -43.04 | 78.56 | 0.6819 | -900.0 | -703.5 | |
| 0.00 | 1.26 | 0.00 | 0.85 | 11.11 | 57.25 | -43.05 | 80.73 | 0.6810 | -516.0 | -364.9 | |
| 0.00 | 0.90 | 0.00 | 0.62 | 14.55 | 56.38 | -43.92 | 75.81 | 0.6948 | -729.0 | -662.7 | |
| 0.00 | 0.27 | 0.00 | 0.18 | 12.21 | 56.87 | -43.43 | 79.14 | 0.6865 | -775.0 | -696.7 | |
| 6.94 | 51.47 | 4.73 | 35.24 | 12.72 | 56.68 | -43.63 | 78.42 | 0.6893 | -900.5 | -535.4 | |
| 7.93 | -11.00 | 5.41 | -11.00 | 12.38 | 56.58 | -43.72 | 78.93 | 0.6902 | -821.7 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.67 | 10.98 | 56.81 | -43.49 | 80.94 | 0.6865 | -587.0 | -494.2 | |
| 0.00 | 0.54 | 0.00 | 0.38 | 15.98 | 55.65 | -44.65 | 73.88 | 0.7056 | -466.0 | -459.5 | |
| 1.44 | -11.00 | 0.99 | -11.00 | 12.82 | 56.31 | -43.99 | 78.31 | 0.6939 | -675.1 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.44 | 13.66 | 56.03 | -44.27 | 77.13 | 0.6981 | -580.0 | -502.4 | |
| 6.22 | -11.00 | 4.27 | -11.00 | 12.63 | 56.22 | -44.08 | 78.60 | 0.6948 | -657.0 | 999999 | |
| 0.00 | 2.97 | 0.00 | 2.03 | 11.26 | 56.50 | -43.80 | 80.55 | 0.6905 | -764.0 | -516.9 | |
| 0.00 | 1.80 | 0.00 | 1.23 | 11.90 | 56.37 | -43.93 | 79.64 | 0.6924 | -517.0 | -451.1 | |
| 1.26 | -11.00 | 0.87 | -11.00 | 12.83 | 56.05 | -44.26 | 78.32 | 0.6971 | -496.9 | 999999 | |
| 0.00 | 3.61 | 0.00 | 2.47 | 11.15 | 56.26 | -44.04 | 80.72 | 0.6934 | -388.0 | -453.7 | |
| 0.00 | 0.99 | 0.00 | 0.69 | 14.36 | 55.51 | -44.79 | 76.20 | 0.7052 | -335.0 | -341.7 | |
| 2.52 | -11.00 | 1.74 | -11.00 | 12.54 | 55.89 | -44.41 | 78.75 | 0.6988 | -556.0 | 999999 | |
| 1.44 | 2.79 | 1.00 | 1.93 | 13.08 | 55.77 | -44.53 | 77.98 | 0.7007 | -604.6 | -477.3 | |
| 0.00 | 1.08 | 0.00 | 0.75 | 13.42 | 55.69 | -44.61 | 77.52 | 0.7019 | -530.0 | -367.1 | |
| 0.00 | 0.90 | 0.00 | 0.62 | 10.59 | 56.15 | -44.15 | 81.54 | 0.6946 | -568.0 | -423.2 | |
| 0.00 | 1.35 | 0.00 | 0.93 | 10.83 | 56.06 | -44.24 | 81.20 | 0.6957 | -531.0 | -436.2 | |
| 0.00 | 3.43 | 0.00 | 2.37 | 12.31 | 55.68 | -44.62 | 79.10 | 0.7012 | 124.0 | 99.8 | |
| 0.00 | 1.08 | 0.00 | 0.75 | 10.60 | 55.84 | -44.46 | 81.54 | 0.6983 | -397.0 | -329.3 | |
| 0.90 | 4.33 | 0.63 | 3.02 | 12.55 | 55.23 | -45.07 | 78.79 | 0.7068 | -490.3 | -398.6 | |
| 0.00 | 1.08 | 0.00 | 0.77 | 13.22 | 54.36 | -45.94 | 77.92 | 0.7177 | -327.0 | -331.0 | |
| 0.00 | 0.63 | 0.00 | 0.45 | 13.40 | 54.32 | -45.99 | 77.68 | 0.7184 | -348.0 | -265.9 | |
| 1.98 | 3.52 | 1.43 | 2.54 | 12.38 | 53.20 | -47.11 | 79.16 | 0.7309 | 759.3 | 580.7 | |
| 0.00 | 2.34 | 0.00 | 1.70 | 12.83 | 53.00 | -47.31 | 78.57 | 0.7334 | 331.0 | 338.2 | |
| 0.00 | 0.27 | 0.00 | 0.20 | 13.21 | 52.76 | -47.54 | 78.06 | 0.7364 | 724.0 | 683.3 | |
| 2.34 | 105.46 | 1.74 | 79.22 | 13.55 | 51.97 | -48.33 | 77.67 | 0.7456 | 863.2 | 579.2 | |
| 0.00 | 0.90 | 0.00 | 0.67 | 14.22 | 51.55 | -48.76 | 76.80 | 0.7509 | 768.0 | 607.5 | |
| 0.00 | 1.80 | 0.00 | 1.36 | 15.40 | 51.09 | -49.21 | 75.29 | 0.7569 | 686.0 | 619.8 | |
| 0.00 | 4.42 | 0.00 | 3.28 | 12.94 | 51.75 | -48.55 | 78.50 | 0.7477 | 680.0 | 595.1 | |
| 2.88 | -36.00 | 2.16 | -36.00 | 13.99 | 51.33 | -48.98 | 77.13 | 0.7532 | 868.9 | 999999 | |
| 2.88 | -36.00 | 2.16 | -36.00 | 13.46 | 51.33 | -48.97 | 77.83 | 0.7528 | 774.8 | 999999 | |
| 6.58 | -36.00 | 4.96 | -36.00 | 14.12 | 51.10 | -49.21 | 76.97 | 0.7559 | 882.6 | 999999 | |
| 2.70 | -36.00 | 2.05 | -36.00 | 15.09 | 50.80 | -49.50 | 75.72 | 0.7599 | 859.8 | 999999 | |
| 12.98 | -36.00 | 9.82 | -36.00 | 14.51 | 50.93 | -49.37 | 76.47 | 0.7580 | 887.5 | 999999 | |
| 3.43 | -36.00 | 2.60 | -36.00 | 14.93 | 50.75 | -49.55 | 75.93 | 0.7602 | 867.7 | 999999 | |
| 1.53 | 3.97 | 1.17 | 3.03 | 15.78 | 50.43 | -49.87 | 74.86 | 0.7645 | 755.4 | 669.9 | |
| 0.00 | 1.26 | 0.00 | 0.96 | 15.32 | 50.58 | -49.72 | 75.44 | 0.7625 | 547.0 | 503.2 | |
| 0.00 | 1.17 | 0.00 | 0.90 | 15.64 | 50.33 | -49.97 | 75.04 | 0.7655 | 688.0 | 625.8 | |
| 0.00 | 0.54 | 0.00 | 0.41 | 15.34 | 50.43 | -49.87 | 75.43 | 0.7641 | 369.0 | 382.2 | |
| 0.00 | 0.27 | 0.00 | 0.20 | 13.42 | 50.86 | -49.44 | 77.91 | 0.7580 | 472.0 | 474.0 | |
| 0.00 | 0.54 | 0.00 | 0.41 | 14.54 | 50.53 | -49.77 | 76.47 | 0.7624 | 394.0 | 373.0 | |
| 0.00 | 0.72 | 0.00 | 0.56 | 16.08 | 49.98 | -50.32 | 74.51 | 0.7696 | 418.0 | 302.0 | |
| 0.00 | 1.89 | 0.00 | 1.45 | 14.35 | 50.45 | -49.86 | 76.73 | 0.7632 | 524.0 | 409.1 | |
| 0.00 | 5.23 | 0.00 | 4.04 | 15.55 | 49.97 | -50.34 | 75.20 | 0.7693 | 565.0 | 525.3 | |
| 0.00 | 0.54 | 0.00 | 0.41 | 12.92 | 50.76 | -49.55 | 78.59 | 0.7589 | 398.0 | 386.5 | |
| 0.00 | 1.35 | 0.00 | 1.03 | 12.83 | 50.44 | -49.86 | 78.72 | 0.7623 | 487.0 | 371.7 | |
| 0.00 | 0.72 | 0.00 | 0.56 | 14.79 | 49.87 | -50.44 | 76.19 | 0.7698 | 534.0 | 468.9 | |
| 0.81 | 15.77 | 0.63 | 12.25 | 15.42 | 49.56 | -50.74 | 75.41 | 0.7736 | 446.6 | 533.9 | |
| 2.25 | 4.06 | 1.74 | 3.14 | 14.36 | 49.85 | -50.45 | 76.76 | 0.7696 | 663.3 | 475.6 | |
| 3.70 | -58.00 | 2.87 | -58.00 | 14.99 | 49.55 | -50.75 | 75.97 | 0.7733 | 577.9 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.77 | 13.84 | 49.61 | -50.69 | 77.45 | 0.7719 | 408.0 | 335.7 | |
| 0.00 | 1.98 | 0.00 | 1.55 | 14.12 | 49.28 | -51.02 | 77.11 | 0.7757 | 532.0 | 421.9 | |
| 0.00 | 0.45 | 0.00 | 0.36 | 14.99 | 48.90 | -51.40 | 76.02 | 0.7803 | 281.0 | 265.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
