SDO HMI 2014-08-13 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.38 | 361.74 | 43.33 | 217.41 | 14.85 | 133.23 | 34.03 | 286.65 | 0.5666 | -529.1 | -277.6 | |
|
previous
or next observation for the same group /

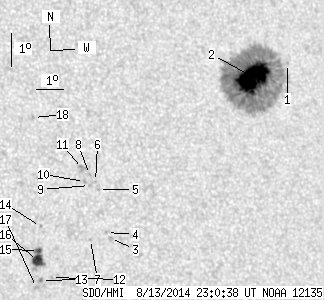

back to the solar disc SDO HMI 2014-08-13 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.67 | 15.65 | 135.42 | 36.22 | 287.45 | 0.5986 | -95.0 | -151.8 | |
| 61.57 | 320.30 | 37.35 | 194.26 | 15.30 | 134.03 | 34.83 | 287.29 | 0.5791 | -1209.9 | -371.8 | |
| 0.00 | 1.89 | 0.00 | 1.07 | 10.72 | 128.10 | 28.90 | 280.28 | 0.4845 | 708.0 | 635.0 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 10.91 | 127.98 | 28.78 | 280.70 | 0.4830 | 766.0 | 580.1 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 12.23 | 127.84 | 28.65 | 283.46 | 0.4837 | -519.0 | -444.3 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 12.48 | 127.77 | 28.57 | 283.99 | 0.4832 | 517.0 | 423.8 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 10.73 | 127.39 | 28.20 | 280.45 | 0.4740 | 656.0 | 484.2 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 12.71 | 127.58 | 28.38 | 284.52 | 0.4810 | 792.0 | 690.1 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 12.37 | 127.54 | 28.34 | 283.84 | 0.4795 | 635.0 | 527.8 | |
| 0.00 | 1.44 | 0.00 | 0.81 | 12.50 | 127.38 | 28.18 | 284.17 | 0.4775 | 804.0 | 734.9 | |
| 0.00 | 4.33 | 0.00 | 2.44 | 12.90 | 127.36 | 28.16 | 285.00 | 0.4782 | 754.0 | 655.8 | |
| 0.00 | 1.26 | 0.00 | 0.70 | 9.65 | 125.93 | 26.74 | 278.40 | 0.4502 | 687.0 | 566.4 | |
| 0.00 | 1.53 | 0.00 | 0.85 | 9.57 | 125.58 | 26.38 | 278.30 | 0.4447 | 975.0 | 911.7 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 11.21 | 125.70 | 26.50 | 281.94 | 0.4492 | 365.0 | 354.5 | |
| 1.98 | 19.02 | 1.10 | 10.51 | 10.49 | 125.56 | 26.36 | 280.36 | 0.4457 | 837.1 | 717.3 | |
| 8.83 | -15.00 | 4.88 | -15.00 | 10.19 | 125.50 | 26.30 | 279.70 | 0.4442 | 1000.6 | 999999 | |
| 0.00 | 2.34 | 0.00 | 1.29 | 9.37 | 125.39 | 26.20 | 277.87 | 0.4415 | 794.0 | 628.5 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 14.55 | 125.84 | 26.64 | 289.10 | 0.4613 | 686.0 | 541.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
