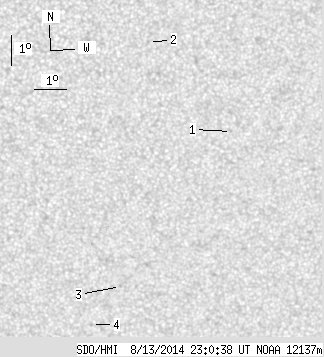

SDO HMI 2014-08-13 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.41 | 0.00 | 2.39 | -16.42 | 103.48 | 4.28 | 191.02 | 0.3993 | 738.0 | 542.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-13 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.43 | -14.06 | 106.35 | 7.15 | 198.95 | 0.3734 | 769.0 | 527.8 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -11.16 | 103.69 | 4.49 | 194.16 | 0.3153 | 795.0 | 579.0 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -19.14 | 102.95 | 3.75 | 188.11 | 0.4400 | 753.0 | 614.1 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -20.42 | 102.04 | 2.84 | 185.84 | 0.4582 | 635.0 | 467.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
