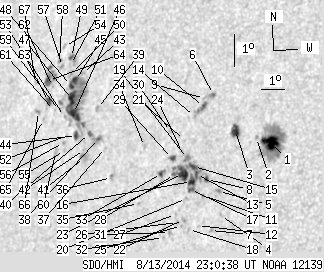

SDO HMI 2014-08-13 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.36 | 349.26 | 66.55 | 243.94 | 13.85 | 54.26 | -44.94 | 76.92 | 0.7049 | -20.8 | 36.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-13 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.60 | 71.49 | 10.01 | 45.87 | 13.90 | 59.67 | -39.52 | 76.11 | 0.6386 | -1158.7 | -454.0 | |
| 0.00 | 1.80 | 0.00 | 1.17 | 14.01 | 59.08 | -40.12 | 76.04 | 0.6465 | -523.0 | -408.8 | |
| 6.76 | 9.38 | 4.44 | 6.15 | 14.16 | 58.18 | -41.02 | 75.96 | 0.6583 | -802.4 | -518.4 | |
| 0.00 | 1.26 | 0.00 | 0.83 | 11.54 | 58.07 | -41.12 | 79.96 | 0.6567 | -644.0 | -509.1 | |
| 0.00 | 2.34 | 0.00 | 1.54 | 12.26 | 57.86 | -41.34 | 78.88 | 0.6601 | -862.0 | -696.0 | |
| 0.54 | 2.70 | 0.36 | 1.81 | 15.19 | 57.01 | -42.18 | 74.62 | 0.6744 | 600.8 | 88.2 | |
| 0.00 | 0.90 | 0.00 | 0.59 | 11.05 | 57.75 | -41.45 | 80.72 | 0.6606 | -597.0 | -597.4 | |
| 1.53 | 52.47 | 1.02 | 35.19 | 12.59 | 57.30 | -41.90 | 78.45 | 0.6676 | -947.8 | -636.9 | |
| 0.00 | 1.71 | 0.00 | 1.15 | 15.04 | 56.67 | -42.53 | 74.90 | 0.6785 | -477.0 | -438.6 | |
| 2.07 | 6.94 | 1.39 | 4.67 | 14.79 | 56.68 | -42.52 | 75.26 | 0.6779 | -813.6 | -662.5 | |
| 0.00 | 1.44 | 0.00 | 0.96 | 12.09 | 57.22 | -41.97 | 79.20 | 0.6680 | -716.0 | -615.4 | |
| 0.00 | 0.45 | 0.00 | 0.30 | 11.17 | 57.19 | -42.01 | 80.59 | 0.6679 | -502.0 | -464.4 | |
| 2.07 | -8.00 | 1.39 | -8.00 | 12.71 | 56.85 | -42.35 | 78.32 | 0.6733 | -935.7 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.85 | 14.46 | 56.38 | -42.82 | 75.79 | 0.6812 | -778.0 | -693.6 | |
| 3.43 | -8.00 | 2.30 | -8.00 | 12.94 | 56.67 | -42.52 | 77.99 | 0.6757 | -809.9 | 999999 | |
| 4.69 | -8.00 | 3.14 | -8.00 | 12.48 | 56.68 | -42.51 | 78.67 | 0.6752 | -880.1 | 999999 | |
| 1.98 | -8.00 | 1.33 | -8.00 | 12.23 | 56.69 | -42.51 | 79.04 | 0.6749 | -727.1 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.72 | 11.02 | 56.83 | -42.36 | 80.84 | 0.6722 | -564.0 | -471.4 | |
| 0.00 | 3.70 | 0.00 | 2.49 | 13.16 | 56.37 | -42.83 | 77.70 | 0.6798 | -678.0 | -628.7 | |
| 0.00 | 0.99 | 0.00 | 0.66 | 11.95 | 56.58 | -42.62 | 79.47 | 0.6761 | -609.0 | -546.4 | |
| 0.00 | 0.72 | 0.00 | 0.49 | 13.70 | 56.12 | -43.07 | 76.94 | 0.6834 | -574.0 | -505.6 | |
| 0.00 | 2.07 | 0.00 | 1.39 | 11.30 | 56.57 | -42.63 | 80.43 | 0.6757 | -771.0 | -671.5 | |
| 9.92 | -8.00 | 6.69 | -8.00 | 12.69 | 56.26 | -42.94 | 78.40 | 0.6807 | -676.2 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.79 | 13.33 | 56.12 | -43.08 | 77.48 | 0.6830 | -475.0 | -453.5 | |
| 0.00 | 0.72 | 0.00 | 0.48 | 11.12 | 56.52 | -42.68 | 80.71 | 0.6763 | -646.0 | -548.8 | |
| 0.00 | 1.26 | 0.00 | 0.85 | 11.19 | 56.34 | -42.86 | 80.60 | 0.6786 | -549.0 | -470.1 | |
| 0.00 | 0.90 | 0.00 | 0.61 | 11.43 | 56.21 | -42.99 | 80.26 | 0.6804 | -473.0 | -402.1 | |
| 0.90 | -8.00 | 0.61 | -8.00 | 12.64 | 55.93 | -43.27 | 78.52 | 0.6848 | -535.3 | 999999 | |
| 1.98 | 3.88 | 1.35 | 2.64 | 13.12 | 55.74 | -43.46 | 77.84 | 0.6876 | -594.0 | -394.9 | |
| 0.00 | 1.89 | 0.00 | 1.29 | 13.93 | 55.47 | -43.73 | 76.69 | 0.6918 | -506.0 | -377.9 | |
| 0.00 | 2.07 | 0.00 | 1.40 | 10.87 | 56.06 | -43.14 | 81.10 | 0.6820 | -480.0 | -461.5 | |
| 0.00 | 0.90 | 0.00 | 0.61 | 10.70 | 55.83 | -43.36 | 81.36 | 0.6847 | -433.0 | -347.0 | |
| 1.62 | 5.32 | 1.11 | 3.64 | 12.63 | 55.37 | -43.83 | 78.59 | 0.6917 | -538.5 | -249.6 | |
| 0.00 | 1.71 | 0.00 | 1.19 | 13.39 | 54.46 | -44.74 | 77.58 | 0.7035 | -506.0 | -295.4 | |
| 0.00 | 1.35 | 0.00 | 0.94 | 11.64 | 54.57 | -44.62 | 80.06 | 0.7008 | 629.0 | 479.1 | |
| 0.00 | 2.34 | 0.00 | 1.66 | 12.33 | 53.23 | -45.97 | 79.17 | 0.7174 | 756.0 | 630.7 | |
| 0.00 | 0.63 | 0.00 | 0.45 | 13.22 | 52.75 | -46.45 | 77.98 | 0.7237 | 693.0 | 600.7 | |
| 1.08 | 10.91 | 0.78 | 7.88 | 13.47 | 52.37 | -46.83 | 77.67 | 0.7283 | 773.8 | 590.5 | |
| 0.00 | 2.61 | 0.00 | 1.90 | 14.37 | 52.08 | -47.11 | 76.46 | 0.7324 | 718.0 | 615.4 | |
| 1.44 | -38.00 | 1.05 | -38.00 | 13.58 | 51.92 | -47.27 | 77.54 | 0.7336 | 845.0 | 999999 | |
| 0.00 | 6.67 | 0.00 | 4.84 | 12.84 | 51.88 | -47.32 | 78.56 | 0.7335 | 594.0 | 443.9 | |
| 0.00 | 1.26 | 0.00 | 0.92 | 13.08 | 51.82 | -47.38 | 78.24 | 0.7344 | 686.0 | 612.7 | |
| 0.00 | 1.71 | 0.00 | 1.27 | 15.37 | 51.09 | -48.11 | 75.21 | 0.7447 | 818.0 | 712.5 | |
| 2.43 | 84.92 | 1.79 | 62.75 | 13.48 | 51.35 | -47.85 | 77.74 | 0.7401 | 794.9 | 596.2 | |
| 4.42 | -44.00 | 3.28 | -44.00 | 15.14 | 50.83 | -48.37 | 75.55 | 0.7473 | 898.1 | 999999 | |
| 10.37 | -44.00 | 7.66 | -44.00 | 14.13 | 51.03 | -48.17 | 76.88 | 0.7442 | 896.2 | 999999 | |
| 11.18 | -44.00 | 8.29 | -44.00 | 14.55 | 50.86 | -48.34 | 76.34 | 0.7464 | 947.0 | 999999 | |
| 2.79 | -44.00 | 2.08 | -44.00 | 14.97 | 50.69 | -48.51 | 75.79 | 0.7487 | 907.5 | 999999 | |
| 1.35 | 6.49 | 1.01 | 4.85 | 15.82 | 50.43 | -48.77 | 74.69 | 0.7525 | 707.8 | 650.2 | |
| 0.00 | 3.07 | 0.00 | 2.29 | 15.33 | 50.58 | -48.62 | 75.32 | 0.7503 | 602.0 | 518.5 | |
| 0.00 | 1.98 | 0.00 | 1.49 | 15.60 | 50.45 | -48.75 | 74.98 | 0.7521 | 602.0 | 615.1 | |
| 0.00 | 1.62 | 0.00 | 1.20 | 13.44 | 50.89 | -48.31 | 77.83 | 0.7453 | 490.0 | 303.7 | |
| 0.00 | 0.72 | 0.00 | 0.54 | 14.00 | 50.64 | -48.56 | 77.09 | 0.7485 | 550.0 | 474.9 | |
| 0.00 | 1.62 | 0.00 | 1.23 | 16.12 | 49.99 | -49.21 | 74.34 | 0.7577 | 326.0 | 262.9 | |
| 0.00 | 1.35 | 0.00 | 1.00 | 12.98 | 50.92 | -48.28 | 78.44 | 0.7447 | 561.0 | 439.1 | |
| 0.00 | 1.26 | 0.00 | 0.93 | 13.21 | 50.81 | -48.39 | 78.13 | 0.7461 | 518.0 | 370.6 | |
| 0.00 | 1.80 | 0.00 | 1.36 | 15.51 | 50.09 | -49.11 | 75.14 | 0.7559 | 703.0 | 608.3 | |
| 0.00 | 2.07 | 0.00 | 1.57 | 15.65 | 49.90 | -49.30 | 74.97 | 0.7581 | 487.0 | 404.9 | |
| 0.00 | 0.63 | 0.00 | 0.47 | 14.17 | 50.35 | -48.84 | 76.89 | 0.7518 | 482.0 | 454.1 | |
| 0.00 | 3.88 | 0.00 | 2.89 | 12.88 | 50.52 | -48.68 | 78.60 | 0.7492 | 556.0 | 290.4 | |
| 0.00 | 0.72 | 0.00 | 0.54 | 14.15 | 50.12 | -49.08 | 76.94 | 0.7544 | 441.0 | 364.9 | |
| 0.00 | 1.08 | 0.00 | 0.82 | 14.86 | 49.81 | -49.39 | 76.02 | 0.7584 | 622.0 | 463.7 | |
| 2.88 | 4.78 | 2.18 | 3.62 | 14.39 | 49.76 | -49.44 | 76.64 | 0.7586 | 649.6 | 472.1 | |
| 4.33 | 16.23 | 3.29 | 12.34 | 15.03 | 49.56 | -49.63 | 75.82 | 0.7613 | 571.4 | 474.6 | |
| 0.00 | 1.26 | 0.00 | 0.96 | 13.83 | 49.68 | -49.52 | 77.39 | 0.7591 | 396.0 | 315.3 | |
| 0.00 | 2.34 | 0.00 | 1.79 | 14.05 | 49.37 | -49.82 | 77.12 | 0.7626 | 548.0 | 367.2 | |
| 0.00 | 1.44 | 0.00 | 1.11 | 14.92 | 48.96 | -50.24 | 76.03 | 0.7677 | 378.0 | 259.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
