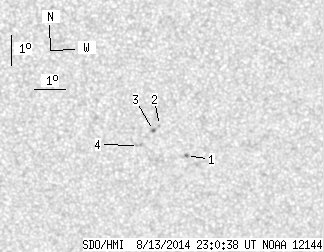

SDO HMI 2014-08-13 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.08 | 7.11 | 0.59 | 3.88 | -17.62 | 102.51 | 3.31 | 187.65 | 0.4153 | -16.1 | 132.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-13 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.54 | 1.80 | 0.30 | 0.99 | -18.10 | 103.44 | 4.24 | 189.56 | 0.4250 | 815.3 | 643.6 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -17.10 | 102.56 | 3.36 | 187.95 | 0.4070 | -738.0 | -532.6 | |
| 0.54 | 2.07 | 0.29 | 1.12 | -17.26 | 102.37 | 3.17 | 187.45 | 0.4092 | -844.0 | -638.9 | |
| 0.00 | 2.34 | 0.00 | 1.28 | -17.76 | 101.90 | 2.70 | 186.22 | 0.4162 | 693.0 | 614.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
