SDO HMI 2014-08-14 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.75 | 18.38 | 9.83 | 23.00 | -17.94 | 161.45 | 62.81 | 247.18 | 0.9197 | 352.4 | 263.8 | |
|
previous
or next observation for the same group /

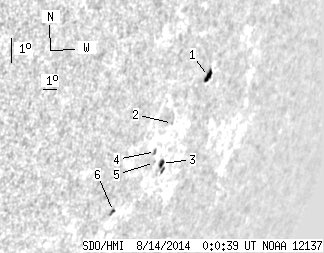

back to the solar disc SDO HMI 2014-08-14 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.78 | 7.21 | 6.17 | 9.30 | -16.31 | 162.81 | 64.16 | 249.27 | 0.9252 | 260.5 | 222.2 | |
| 0.00 | 0.72 | 0.00 | 0.89 | -17.65 | 161.06 | 62.41 | 247.38 | 0.9166 | 333.0 | 303.2 | |
| 2.25 | 5.68 | 2.82 | 7.12 | -18.97 | 161.13 | 62.49 | 246.02 | 0.9196 | 601.3 | 327.6 | |
| 0.00 | 1.89 | 0.00 | 2.29 | -18.50 | 160.41 | 61.77 | 246.30 | 0.9141 | 590.0 | 476.3 | |
| 0.00 | 0.72 | 0.00 | 0.88 | -18.88 | 160.59 | 61.94 | 245.95 | 0.9160 | 587.0 | 545.0 | |
| 0.72 | 2.16 | 0.84 | 2.52 | -20.32 | 158.76 | 60.11 | 243.89 | 0.9073 | -347.6 | -280.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
