SDO HMI 2014-08-14 01:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.48 | 0.00 | 3.43 | -9.61 | 110.82 | 12.72 | 218.17 | 0.3529 | 234.7 | 208.5 | |
|
previous
or next observation for the same group /

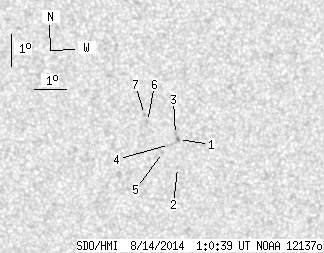

back to the solar disc SDO HMI 2014-08-14 01:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.67 | -9.64 | 111.24 | 13.14 | 219.03 | 0.3575 | 950.0 | 859.9 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -10.53 | 111.24 | 13.15 | 217.51 | 0.3689 | 683.0 | 496.1 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -9.48 | 111.14 | 13.04 | 219.10 | 0.3545 | 829.0 | 634.9 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -9.79 | 110.96 | 12.86 | 218.16 | 0.3566 | 249.0 | 294.4 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -10.04 | 110.75 | 12.65 | 217.27 | 0.3577 | 704.0 | 580.4 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -9.04 | 110.24 | 12.14 | 217.89 | 0.3398 | -880.0 | -618.0 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -8.82 | 110.14 | 12.04 | 218.07 | 0.3358 | -892.0 | -715.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
