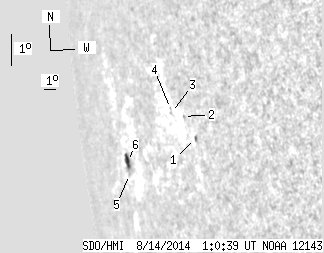

SDO HMI 2014-08-14 01:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.69 | 11.80 | 10.49 | 23.36 | -6.20 | 23.55 | -74.55 | 98.18 | 0.9678 | 2.8 | 103.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 01:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 2.56 | -5.10 | 29.38 | -68.72 | 97.96 | 0.9387 | 372.0 | 282.1 | |
| 0.00 | 0.90 | 0.00 | 1.33 | -4.52 | 28.47 | -69.63 | 97.20 | 0.9434 | 393.0 | 323.5 | |
| 0.00 | 1.08 | 0.00 | 1.69 | -4.51 | 27.37 | -70.72 | 97.02 | 0.9495 | 269.0 | 215.9 | |
| 0.00 | 0.27 | 0.00 | 0.42 | -4.40 | 27.31 | -70.79 | 96.89 | 0.9498 | 317.0 | 308.7 | |
| 0.00 | 1.08 | 0.00 | 2.42 | -7.04 | 21.90 | -76.19 | 98.78 | 0.9762 | -85.0 | -84.9 | |
| 4.69 | 6.67 | 10.49 | 14.94 | -6.64 | 21.84 | -76.26 | 98.37 | 0.9762 | -116.6 | -24.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
