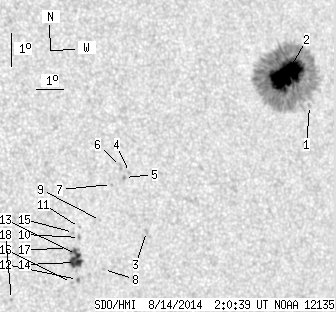

SDO HMI 2014-08-14 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.05 | 360.86 | 44.43 | 221.27 | 14.88 | 133.25 | 35.71 | 286.21 | 0.5894 | -488.8 | -287.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.95 | 14.33 | 134.72 | 37.18 | 285.02 | 0.6084 | -129.0 | -147.8 | |
| 60.15 | 323.56 | 37.20 | 200.17 | 15.30 | 133.97 | 36.43 | 286.81 | 0.6006 | -1145.9 | -351.8 | |
| 0.00 | 1.71 | 0.00 | 0.98 | 10.88 | 128.07 | 30.53 | 280.27 | 0.5090 | 619.0 | 564.9 | |
| 0.00 | 1.44 | 0.00 | 0.83 | 12.71 | 127.69 | 30.14 | 283.95 | 0.5067 | 766.0 | 621.9 | |
| 0.00 | 1.44 | 0.00 | 0.83 | 12.57 | 127.49 | 29.94 | 283.73 | 0.5035 | 841.0 | 748.6 | |
| 0.00 | 2.89 | 0.00 | 1.65 | 12.91 | 127.39 | 29.84 | 284.44 | 0.5029 | 515.0 | 569.3 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 12.38 | 127.00 | 29.45 | 283.50 | 0.4959 | -462.0 | -368.7 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 9.82 | 126.43 | 28.88 | 278.40 | 0.4831 | 464.0 | 382.9 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 11.31 | 126.48 | 28.93 | 281.47 | 0.4860 | 541.0 | 345.6 | |
| 0.00 | 1.98 | 0.00 | 1.11 | 10.83 | 125.69 | 28.14 | 280.67 | 0.4733 | 622.0 | 472.5 | |
| 0.00 | 0.63 | 0.00 | 0.35 | 11.14 | 125.72 | 28.17 | 281.30 | 0.4743 | 401.0 | 334.4 | |
| 0.36 | 1.44 | 0.20 | 0.81 | 9.56 | 125.49 | 27.95 | 278.00 | 0.4686 | 836.5 | 713.9 | |
| 4.42 | 17.40 | 2.48 | 9.75 | 10.32 | 125.53 | 27.99 | 279.62 | 0.4701 | 864.1 | 718.6 | |
| 8.12 | -13.00 | 4.55 | -13.00 | 10.08 | 125.47 | 27.93 | 279.12 | 0.4689 | 1034.3 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 11.00 | 125.49 | 27.95 | 281.06 | 0.4707 | 782.0 | 581.9 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 9.48 | 125.28 | 27.73 | 277.86 | 0.4652 | 797.0 | 686.5 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 10.52 | 125.24 | 27.69 | 280.10 | 0.4660 | 753.0 | 631.4 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 9.07 | 123.17 | 25.63 | 277.26 | 0.4324 | -785.0 | -652.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
