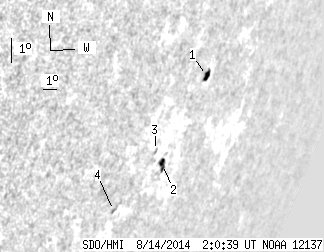

SDO HMI 2014-08-14 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.12 | 16.94 | 10.78 | 22.16 | -18.08 | 161.47 | 63.92 | 247.33 | 0.9269 | 319.5 | 154.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.88 | 6.22 | 5.23 | 8.40 | -16.29 | 162.76 | 65.21 | 249.55 | 0.9316 | 292.7 | 209.4 | |
| 4.24 | 6.58 | 5.55 | 8.63 | -19.04 | 161.32 | 63.77 | 246.31 | 0.9276 | 452.7 | 292.7 | |
| 0.00 | 1.98 | 0.00 | 2.51 | -18.50 | 160.51 | 62.96 | 246.65 | 0.9217 | 450.0 | 395.6 | |
| 0.00 | 2.16 | 0.00 | 2.62 | -20.29 | 158.72 | 61.18 | 244.24 | 0.9141 | -410.0 | -302.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
