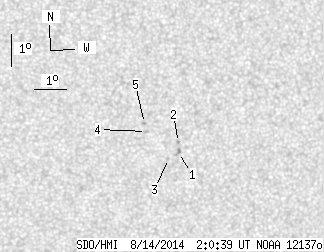

SDO HMI 2014-08-14 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.12 | 0.00 | 3.77 | -9.39 | 110.87 | 13.33 | 219.85 | 0.3564 | 139.2 | 233.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.62 | 0.00 | 1.39 | -9.69 | 111.26 | 13.72 | 220.15 | 0.3641 | 700.0 | 673.9 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -9.37 | 111.25 | 13.70 | 220.69 | 0.3601 | 945.0 | 823.1 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -9.87 | 110.95 | 13.41 | 219.18 | 0.3632 | 712.0 | 507.6 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -8.99 | 110.22 | 12.68 | 219.18 | 0.3446 | -791.0 | -666.3 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -8.74 | 110.15 | 12.61 | 219.50 | 0.3406 | -870.0 | -720.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
