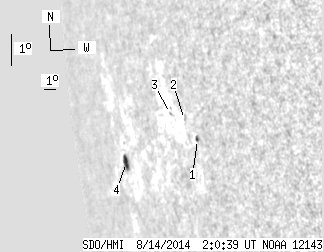

SDO HMI 2014-08-14 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.77 | 10.99 | 11.78 | 21.00 | -6.21 | 23.60 | -73.95 | 98.28 | 0.9653 | -59.9 | 84.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.81 | 1.80 | 1.12 | 2.49 | -5.12 | 29.48 | -68.06 | 98.09 | 0.9347 | 307.9 | 277.2 | |
| 0.00 | 0.81 | 0.00 | 1.17 | -4.61 | 28.50 | -69.05 | 97.39 | 0.9401 | 373.0 | 382.7 | |
| 0.00 | 1.08 | 0.00 | 1.65 | -4.56 | 27.27 | -70.28 | 97.14 | 0.9471 | 227.0 | 190.1 | |
| 4.96 | 7.30 | 10.66 | 15.69 | -6.67 | 21.91 | -75.64 | 98.49 | 0.9739 | -166.1 | -71.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
