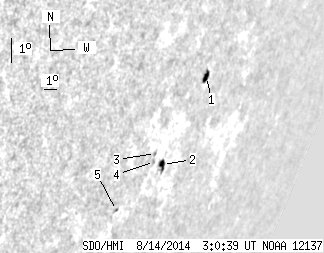

SDO HMI 2014-08-14 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.39 | 16.58 | 11.43 | 22.26 | -18.02 | 161.60 | 64.61 | 247.58 | 0.9308 | 292.7 | 179.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.42 | 6.13 | 6.11 | 8.47 | -16.29 | 162.84 | 65.84 | 249.71 | 0.9352 | 220.6 | 173.8 | |
| 3.97 | 6.58 | 5.32 | 8.84 | -19.00 | 161.34 | 64.34 | 246.50 | 0.9309 | 437.2 | 241.3 | |
| 0.00 | 1.53 | 0.00 | 1.98 | -18.55 | 160.51 | 63.51 | 246.75 | 0.9252 | 378.0 | 326.1 | |
| 0.00 | 0.90 | 0.00 | 1.18 | -18.83 | 160.62 | 63.63 | 246.49 | 0.9264 | 527.0 | 464.8 | |
| 0.00 | 1.44 | 0.00 | 1.79 | -20.27 | 158.92 | 61.93 | 244.50 | 0.9187 | -355.0 | -281.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
