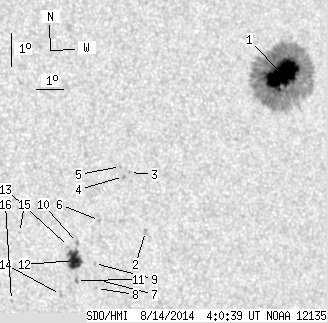

SDO HMI 2014-08-14 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.33 | 353.63 | 44.43 | 219.54 | 14.81 | 133.19 | 36.74 | 285.80 | 0.6030 | -446.0 | -294.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.64 | 313.98 | 35.55 | 197.00 | 15.32 | 134.04 | 37.59 | 286.54 | 0.6159 | -1188.9 | -363.9 | |
| 0.00 | 2.25 | 0.00 | 1.31 | 10.88 | 128.10 | 31.66 | 280.07 | 0.5255 | 567.0 | 528.2 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 12.71 | 127.76 | 31.31 | 283.62 | 0.5236 | 761.0 | 628.7 | |
| 0.00 | 1.26 | 0.00 | 0.73 | 12.60 | 127.52 | 31.08 | 283.47 | 0.5200 | 806.0 | 765.1 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 12.91 | 127.46 | 31.01 | 284.08 | 0.5197 | 703.0 | 609.3 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 11.31 | 126.49 | 30.05 | 281.22 | 0.5025 | 258.0 | 164.3 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 9.49 | 126.30 | 29.85 | 277.60 | 0.4972 | 543.0 | 478.0 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 9.26 | 126.17 | 29.72 | 277.14 | 0.4951 | 584.0 | 480.9 | |
| 0.00 | 1.44 | 0.00 | 0.82 | 10.02 | 126.17 | 29.72 | 278.68 | 0.4959 | 579.0 | 508.8 | |
| 0.00 | 1.44 | 0.00 | 0.82 | 10.69 | 125.64 | 29.19 | 280.14 | 0.4888 | 773.0 | 645.3 | |
| 0.00 | 1.80 | 0.00 | 1.02 | 9.54 | 125.49 | 29.04 | 277.80 | 0.4851 | 859.0 | 740.6 | |
| 15.69 | 21.65 | 8.88 | 12.25 | 10.15 | 125.48 | 29.03 | 279.06 | 0.4856 | 946.4 | 571.8 | |
| 0.00 | 0.63 | 0.00 | 0.36 | 10.59 | 125.31 | 28.86 | 279.99 | 0.4837 | 745.0 | 655.6 | |
| 0.00 | 2.25 | 0.00 | 1.27 | 9.15 | 124.89 | 28.44 | 277.05 | 0.4757 | 671.0 | 622.5 | |
| 0.00 | 0.72 | 0.00 | 0.40 | 11.10 | 123.64 | 27.20 | 281.47 | 0.4595 | 683.0 | 563.4 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 9.05 | 123.18 | 26.73 | 277.06 | 0.4494 | -729.0 | -585.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
