SDO HMI 2014-08-14 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.81 | 362.79 | 43.83 | 226.96 | 14.86 | 133.25 | 37.35 | 285.74 | 0.6113 | -479.3 | -283.6 | |
|
previous
or next observation for the same group /

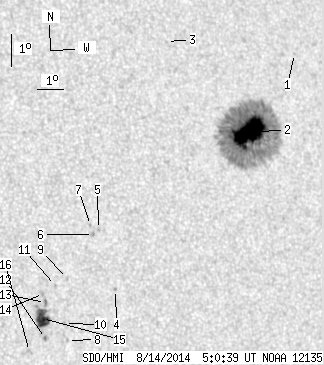

back to the solar disc SDO HMI 2014-08-14 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.47 | 17.60 | 136.45 | 40.55 | 289.31 | 0.6589 | 523.0 | 445.0 | |
| 56.11 | 322.85 | 35.46 | 204.01 | 15.32 | 134.04 | 38.14 | 286.39 | 0.6232 | -1240.5 | -355.0 | |
| 0.00 | 1.08 | 0.00 | 0.67 | 18.32 | 131.43 | 35.53 | 292.06 | 0.5974 | -655.0 | -489.0 | |
| 0.00 | 1.17 | 0.00 | 0.69 | 10.88 | 128.17 | 32.27 | 279.95 | 0.5345 | 706.0 | 622.6 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 12.74 | 127.80 | 31.90 | 283.51 | 0.5321 | 769.0 | 588.8 | |
| 0.00 | 1.62 | 0.00 | 0.95 | 12.59 | 127.59 | 31.69 | 283.30 | 0.5289 | 834.0 | 726.3 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 12.88 | 127.52 | 31.62 | 283.84 | 0.5285 | 767.0 | 626.2 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 9.43 | 126.28 | 30.38 | 277.42 | 0.5051 | 541.0 | 445.1 | |
| 0.00 | 1.35 | 0.00 | 0.78 | 11.31 | 126.48 | 30.58 | 281.10 | 0.5104 | 39.0 | 119.5 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 9.95 | 126.22 | 30.32 | 278.46 | 0.5047 | 827.0 | 611.1 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 11.13 | 126.03 | 30.13 | 280.82 | 0.5034 | 429.0 | 250.7 | |
| 0.00 | 1.62 | 0.00 | 0.92 | 9.54 | 125.50 | 29.60 | 277.72 | 0.4936 | 891.0 | 741.4 | |
| 0.00 | 2.53 | 0.00 | 1.44 | 10.63 | 125.62 | 29.72 | 279.91 | 0.4966 | 703.0 | 639.8 | |
| 0.00 | 0.54 | 0.00 | 0.31 | 10.91 | 125.58 | 29.67 | 280.48 | 0.4964 | 701.0 | 594.5 | |
| 14.70 | 22.01 | 8.37 | 12.52 | 10.15 | 125.46 | 29.56 | 278.97 | 0.4936 | 1005.2 | 649.6 | |
| 0.00 | 2.35 | 0.00 | 1.33 | 9.18 | 124.90 | 29.00 | 277.05 | 0.4842 | 782.0 | 661.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
