SDO HMI 2014-08-14 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.94 | 365.98 | 59.07 | 243.13 | 13.82 | 54.15 | -41.75 | 76.57 | 0.6657 | -42.6 | 58.7 | |
|
previous
or next observation for the same group /

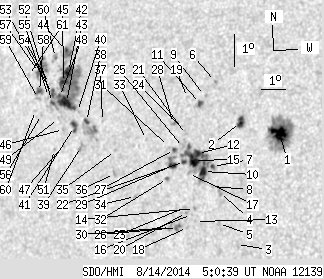

back to the solar disc SDO HMI 2014-08-14 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.52 | 70.27 | 9.53 | 43.16 | 13.93 | 59.77 | -36.13 | 75.40 | 0.5936 | -1217.1 | -489.2 | |
| 4.96 | 7.49 | 3.11 | 4.69 | 14.16 | 58.19 | -37.71 | 75.36 | 0.6151 | -863.1 | -636.0 | |
| 0.00 | 1.08 | 0.00 | 0.67 | 10.45 | 58.66 | -37.25 | 81.38 | 0.6042 | -395.0 | -469.0 | |
| 0.00 | 3.25 | 0.00 | 2.04 | 11.98 | 57.76 | -38.15 | 78.97 | 0.6178 | -791.0 | -677.6 | |
| 0.00 | 2.35 | 0.00 | 1.47 | 11.04 | 57.87 | -38.04 | 80.48 | 0.6154 | -519.0 | -384.8 | |
| 0.00 | 1.17 | 0.00 | 0.75 | 15.35 | 56.95 | -38.95 | 73.75 | 0.6338 | 628.0 | 458.6 | |
| 0.90 | 58.45 | 0.57 | 37.30 | 12.75 | 57.34 | -38.56 | 77.78 | 0.6242 | -1021.8 | -636.8 | |
| 0.00 | 0.90 | 0.00 | 0.57 | 12.14 | 57.45 | -38.45 | 78.74 | 0.6221 | -626.0 | -492.7 | |
| 0.00 | 0.45 | 0.00 | 0.29 | 14.89 | 56.60 | -39.30 | 74.54 | 0.6374 | -757.0 | -731.4 | |
| 4.69 | -7.00 | 2.98 | -7.00 | 12.58 | 57.02 | -38.88 | 78.11 | 0.6284 | -987.6 | 999999 | |
| 1.89 | 3.07 | 1.22 | 1.97 | 14.63 | 56.49 | -39.41 | 74.96 | 0.6383 | -864.1 | -702.1 | |
| 4.24 | -7.00 | 2.71 | -7.00 | 13.10 | 56.68 | -39.22 | 77.32 | 0.6335 | -816.4 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.63 | 11.04 | 56.95 | -38.95 | 80.57 | 0.6277 | -668.0 | -564.1 | |
| 0.00 | 1.44 | 0.00 | 0.92 | 11.43 | 56.85 | -39.05 | 79.96 | 0.6294 | -838.0 | -621.8 | |
| 8.03 | -7.00 | 5.13 | -7.00 | 12.88 | 56.56 | -39.34 | 77.69 | 0.6348 | -856.3 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.52 | 11.24 | 56.76 | -39.14 | 80.27 | 0.6304 | -691.0 | -530.1 | |
| 0.00 | 1.98 | 0.00 | 1.27 | 12.47 | 56.43 | -39.47 | 78.35 | 0.6360 | 44.0 | -1.5 | |
| 0.00 | 0.99 | 0.00 | 0.63 | 10.83 | 56.67 | -39.23 | 80.92 | 0.6314 | -533.0 | -442.0 | |
| 0.00 | 1.53 | 0.00 | 0.99 | 14.78 | 55.93 | -39.97 | 74.85 | 0.6458 | -431.0 | -387.6 | |
| 0.00 | 0.99 | 0.00 | 0.63 | 11.28 | 56.55 | -39.35 | 80.21 | 0.6332 | -714.0 | -606.1 | |
| 0.00 | 0.99 | 0.00 | 0.64 | 13.65 | 56.12 | -39.78 | 76.56 | 0.6415 | -609.0 | -605.4 | |
| 1.44 | -7.00 | 0.93 | -7.00 | 12.83 | 56.20 | -39.70 | 77.83 | 0.6394 | -614.0 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.15 | 11.43 | 56.45 | -39.45 | 79.99 | 0.6347 | -505.0 | -376.0 | |
| 0.00 | 0.72 | 0.00 | 0.47 | 13.77 | 56.02 | -39.88 | 76.39 | 0.6430 | -662.0 | -592.9 | |
| 0.00 | 1.80 | 0.00 | 1.16 | 13.25 | 56.08 | -39.82 | 77.19 | 0.6415 | -487.0 | -460.6 | |
| 0.00 | 3.61 | 0.00 | 2.31 | 10.80 | 56.27 | -39.63 | 81.00 | 0.6366 | -626.0 | -630.5 | |
| 1.17 | 2.62 | 0.76 | 1.69 | 13.16 | 55.73 | -40.17 | 77.38 | 0.6459 | -645.4 | -507.8 | |
| 0.00 | 2.16 | 0.00 | 1.41 | 13.95 | 55.53 | -40.37 | 76.20 | 0.6496 | -545.0 | -451.4 | |
| 3.88 | 9.47 | 2.51 | 6.13 | 12.67 | 55.74 | -40.16 | 78.14 | 0.6452 | -546.6 | -283.2 | |
| 0.00 | 3.25 | 0.00 | 2.09 | 10.78 | 55.99 | -39.91 | 81.05 | 0.6403 | -499.0 | -409.8 | |
| 0.00 | 0.54 | 0.00 | 0.35 | 13.23 | 55.47 | -40.43 | 77.30 | 0.6494 | -195.0 | -272.2 | |
| 0.45 | 1.98 | 0.29 | 1.29 | 12.26 | 55.62 | -40.28 | 78.78 | 0.6464 | -574.2 | -440.0 | |
| 0.00 | 0.72 | 0.00 | 0.48 | 13.38 | 54.53 | -41.37 | 77.21 | 0.6616 | -485.0 | -409.4 | |
| 0.00 | 1.17 | 0.00 | 0.77 | 11.62 | 54.41 | -41.49 | 79.88 | 0.6614 | 727.0 | 575.5 | |
| 0.00 | 1.08 | 0.00 | 0.73 | 12.95 | 53.31 | -42.59 | 78.00 | 0.6765 | 686.0 | 593.0 | |
| 0.00 | 2.07 | 0.00 | 1.39 | 12.25 | 53.41 | -42.49 | 79.03 | 0.6746 | 823.0 | 581.0 | |
| 0.00 | 0.81 | 0.00 | 0.55 | 13.79 | 52.57 | -43.33 | 76.86 | 0.6866 | 620.0 | 508.8 | |
| 1.71 | 19.03 | 1.18 | 13.03 | 13.74 | 51.89 | -44.01 | 77.02 | 0.6949 | 845.8 | 424.3 | |
| 0.00 | 3.70 | 0.00 | 2.54 | 12.96 | 51.85 | -44.05 | 78.14 | 0.6947 | 679.0 | 613.9 | |
| 0.00 | 0.72 | 0.00 | 0.50 | 14.01 | 51.43 | -44.47 | 76.68 | 0.7008 | 860.0 | 693.9 | |
| 3.70 | 6.13 | 2.56 | 4.25 | 13.55 | 51.41 | -44.49 | 77.35 | 0.7006 | 804.6 | 600.7 | |
| 6.95 | 108.34 | 4.87 | 75.95 | 15.19 | 50.73 | -45.18 | 75.10 | 0.7106 | 1014.5 | 673.4 | |
| 12.81 | -42.00 | 8.95 | -42.00 | 14.25 | 50.89 | -45.02 | 76.41 | 0.7076 | 958.5 | 999999 | |
| 1.17 | -42.00 | 0.83 | -42.00 | 15.82 | 50.46 | -45.44 | 74.25 | 0.7146 | 787.7 | 999999 | |
| 4.24 | -42.00 | 2.98 | -42.00 | 14.84 | 50.60 | -45.30 | 75.61 | 0.7117 | 1045.3 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.82 | 13.42 | 50.96 | -44.95 | 77.58 | 0.7059 | 531.0 | 463.9 | |
| 0.00 | 0.36 | 0.00 | 0.25 | 12.90 | 51.03 | -44.87 | 78.30 | 0.7046 | 509.0 | 573.2 | |
| 1.35 | -42.00 | 0.95 | -42.00 | 14.40 | 50.53 | -45.37 | 76.23 | 0.7120 | 885.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.70 | 13.73 | 50.66 | -45.24 | 77.16 | 0.7098 | 580.0 | 521.6 | |
| 0.36 | 3.79 | 0.26 | 2.69 | 15.57 | 50.03 | -45.87 | 74.66 | 0.7192 | 592.5 | 458.6 | |
| 0.00 | 1.08 | 0.00 | 0.76 | 12.78 | 50.70 | -45.20 | 78.50 | 0.7084 | 566.0 | 442.2 | |
| 1.35 | -42.00 | 0.96 | -42.00 | 14.20 | 50.27 | -45.63 | 76.55 | 0.7148 | 690.7 | 999999 | |
| 2.44 | -42.00 | 1.72 | -42.00 | 14.47 | 50.20 | -45.70 | 76.18 | 0.7160 | 665.3 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.32 | 14.76 | 49.99 | -45.91 | 75.80 | 0.7188 | 620.0 | 523.0 | |
| 0.00 | 0.54 | 0.00 | 0.38 | 14.36 | 50.05 | -45.85 | 76.34 | 0.7177 | 403.0 | 404.7 | |
| 0.00 | 1.26 | 0.00 | 0.90 | 13.79 | 49.88 | -46.02 | 77.15 | 0.7191 | 393.0 | 375.7 | |
| 3.43 | 16.33 | 2.46 | 11.70 | 15.06 | 49.45 | -46.45 | 75.45 | 0.7254 | 566.4 | 466.0 | |
| 2.26 | 5.77 | 1.61 | 4.13 | 14.48 | 49.61 | -46.29 | 76.23 | 0.7229 | 648.4 | 454.7 | |
| 0.00 | 1.89 | 0.00 | 1.35 | 14.27 | 49.62 | -46.28 | 76.52 | 0.7226 | 459.0 | 381.2 | |
| 0.00 | 1.08 | 0.00 | 0.77 | 13.89 | 49.58 | -46.32 | 77.05 | 0.7227 | 424.0 | 344.3 | |
| 0.00 | 1.35 | 0.00 | 0.98 | 14.93 | 48.98 | -46.92 | 75.69 | 0.7307 | 263.0 | 215.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
