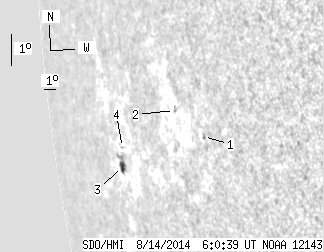

SDO HMI 2014-08-14 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.79 | 13.43 | 7.05 | 23.23 | -6.46 | 23.04 | -72.31 | 98.80 | 0.9581 | -148.0 | 0.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.89 | 0.00 | 2.37 | -5.06 | 29.56 | -65.79 | 98.42 | 0.9201 | 539.0 | 336.6 | |
| 0.00 | 1.26 | 0.00 | 1.72 | -4.49 | 27.40 | -67.95 | 97.44 | 0.9334 | 391.0 | 319.7 | |
| 3.79 | 10.01 | 7.05 | 18.65 | -6.83 | 21.83 | -73.52 | 98.98 | 0.9651 | -283.4 | -97.4 | |
| 0.00 | 0.27 | 0.00 | 0.49 | -6.21 | 22.08 | -73.28 | 98.39 | 0.9636 | -419.0 | -421.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
