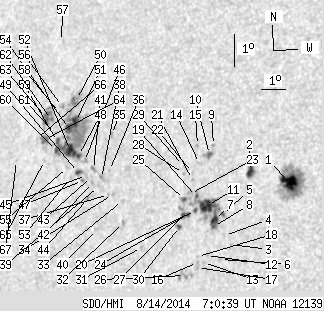

SDO HMI 2014-08-14 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.33 | 366.31 | 60.27 | 239.50 | 13.92 | 54.17 | -40.63 | 76.26 | 0.6516 | -25.8 | 61.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.60 | 71.27 | 10.07 | 43.19 | 13.94 | 59.75 | -35.05 | 75.13 | 0.5789 | -1167.8 | -482.4 | |
| 5.14 | 7.85 | 3.18 | 4.85 | 14.18 | 58.20 | -36.60 | 75.09 | 0.6005 | -872.3 | -628.4 | |
| 0.00 | 0.81 | 0.00 | 0.50 | 11.91 | 57.81 | -36.99 | 78.93 | 0.6021 | -817.0 | -714.9 | |
| 0.00 | 1.44 | 0.00 | 0.90 | 12.17 | 57.54 | -37.27 | 78.54 | 0.6062 | -519.0 | -450.0 | |
| 0.81 | 71.09 | 0.51 | 44.80 | 12.80 | 57.35 | -37.45 | 77.53 | 0.6096 | -998.6 | -560.3 | |
| 0.00 | 1.80 | 0.00 | 1.12 | 11.43 | 57.50 | -37.31 | 79.77 | 0.6059 | -584.0 | -442.2 | |
| 4.78 | -5.00 | 2.99 | -5.00 | 12.60 | 57.07 | -37.73 | 77.91 | 0.6130 | -1018.7 | 999999 | |
| 1.53 | -5.00 | 0.96 | -5.00 | 12.41 | 57.06 | -37.74 | 78.21 | 0.6129 | -854.8 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.74 | 14.87 | 56.60 | -38.21 | 74.33 | 0.6231 | -683.0 | -583.4 | |
| 1.35 | 5.50 | 0.86 | 3.48 | 14.59 | 56.50 | -38.31 | 74.80 | 0.6239 | -904.4 | -678.8 | |
| 13.89 | -5.00 | 8.74 | -5.00 | 13.03 | 56.72 | -38.09 | 77.26 | 0.6184 | -880.2 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 11.51 | 56.93 | -37.87 | 79.70 | 0.6136 | -804.0 | -548.5 | |
| 0.00 | 1.08 | 0.00 | 0.68 | 11.29 | 56.85 | -37.95 | 80.06 | 0.6145 | -743.0 | -526.2 | |
| 0.00 | 1.89 | 0.00 | 1.20 | 14.29 | 56.16 | -38.65 | 75.35 | 0.6278 | -676.0 | -511.9 | |
| 0.00 | 0.90 | 0.00 | 0.58 | 14.83 | 55.96 | -38.84 | 74.54 | 0.6313 | -486.0 | -415.4 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 11.28 | 56.62 | -38.19 | 80.11 | 0.6177 | -750.0 | -598.0 | |
| 0.00 | 2.26 | 0.00 | 1.42 | 11.12 | 56.64 | -38.17 | 80.36 | 0.6172 | -505.0 | -409.4 | |
| 0.00 | 0.90 | 0.00 | 0.57 | 11.46 | 56.59 | -38.22 | 79.82 | 0.6182 | -576.0 | -491.7 | |
| 0.90 | -5.00 | 0.57 | -5.00 | 13.28 | 56.23 | -38.57 | 76.95 | 0.6252 | -697.2 | 999999 | |
| 1.17 | -5.00 | 0.74 | -5.00 | 12.85 | 56.27 | -38.53 | 77.63 | 0.6240 | -680.8 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.69 | 13.78 | 55.98 | -38.83 | 76.19 | 0.6293 | -724.0 | -598.9 | |
| 0.00 | 0.81 | 0.00 | 0.52 | 13.99 | 55.93 | -38.87 | 75.86 | 0.6302 | -553.0 | -502.2 | |
| 0.00 | 2.07 | 0.00 | 1.32 | 13.35 | 55.98 | -38.83 | 76.87 | 0.6286 | -497.0 | -481.1 | |
| 1.53 | -5.00 | 0.97 | -5.00 | 12.70 | 55.98 | -38.83 | 77.90 | 0.6278 | -638.5 | 999999 | |
| 1.26 | -5.00 | 0.80 | -5.00 | 13.15 | 55.78 | -39.03 | 77.22 | 0.6310 | -602.6 | 999999 | |
| 0.00 | 9.47 | 0.00 | 5.99 | 10.85 | 56.17 | -38.64 | 80.85 | 0.6234 | -542.0 | -471.6 | |
| 1.62 | -5.00 | 1.03 | -5.00 | 12.66 | 55.83 | -38.98 | 77.99 | 0.6297 | -620.4 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.81 | 13.94 | 55.58 | -39.22 | 76.01 | 0.6347 | -531.0 | -458.1 | |
| 0.00 | 0.54 | 0.00 | 0.35 | 14.18 | 55.53 | -39.27 | 75.64 | 0.6358 | -453.0 | -326.7 | |
| 1.26 | 3.07 | 0.80 | 1.95 | 12.32 | 55.73 | -39.08 | 78.55 | 0.6306 | -542.4 | -357.7 | |
| 0.00 | 0.99 | 0.00 | 0.64 | 11.57 | 54.32 | -40.49 | 79.87 | 0.6484 | 566.0 | 554.6 | |
| 0.00 | 1.62 | 0.00 | 1.07 | 12.28 | 53.45 | -41.36 | 78.88 | 0.6603 | 519.0 | 530.4 | |
| 0.00 | 1.44 | 0.00 | 0.95 | 12.94 | 53.27 | -41.53 | 77.89 | 0.6632 | 710.0 | 504.1 | |
| 0.00 | 1.44 | 0.00 | 0.96 | 13.09 | 52.82 | -41.98 | 77.72 | 0.6690 | 688.0 | 582.1 | |
| 0.00 | 2.26 | 0.00 | 1.51 | 14.91 | 52.37 | -42.43 | 75.09 | 0.6770 | 717.0 | 580.8 | |
| 0.00 | 0.90 | 0.00 | 0.60 | 13.81 | 52.54 | -42.26 | 76.69 | 0.6734 | 618.0 | 569.1 | |
| 0.00 | 0.99 | 0.00 | 0.66 | 13.08 | 52.66 | -42.15 | 77.76 | 0.6711 | -87.0 | -96.6 | |
| 0.00 | 2.80 | 0.00 | 1.88 | 13.54 | 52.26 | -42.54 | 77.12 | 0.6766 | 804.0 | 647.3 | |
| 0.00 | 0.99 | 0.00 | 0.67 | 13.29 | 52.19 | -42.62 | 77.50 | 0.6772 | 211.0 | 230.2 | |
| 0.00 | 1.53 | 0.00 | 1.03 | 11.98 | 52.37 | -42.43 | 79.42 | 0.6737 | 49.0 | 112.9 | |
| 0.00 | 2.80 | 0.00 | 1.89 | 13.79 | 51.87 | -42.94 | 76.81 | 0.6818 | 870.0 | 702.5 | |
| 0.00 | 1.44 | 0.00 | 0.97 | 13.39 | 51.91 | -42.89 | 77.38 | 0.6808 | 561.0 | 508.9 | |
| 0.00 | 0.72 | 0.00 | 0.49 | 13.57 | 51.83 | -42.98 | 77.13 | 0.6820 | 470.0 | 455.1 | |
| 0.00 | 2.44 | 0.00 | 1.64 | 12.89 | 51.81 | -43.00 | 78.13 | 0.6816 | 666.0 | 591.1 | |
| 0.00 | 1.26 | 0.00 | 0.86 | 13.59 | 51.61 | -43.19 | 77.14 | 0.6847 | 571.0 | 497.3 | |
| 0.00 | 3.07 | 0.00 | 2.09 | 14.00 | 51.43 | -43.38 | 76.55 | 0.6875 | 529.0 | 476.1 | |
| 0.00 | 1.35 | 0.00 | 0.92 | 13.42 | 51.48 | -43.33 | 77.39 | 0.6862 | 807.0 | 709.7 | |
| 1.80 | 99.60 | 1.23 | 68.61 | 14.17 | 51.13 | -43.68 | 76.36 | 0.6913 | 916.1 | 659.6 | |
| 2.35 | 3.88 | 1.60 | 2.64 | 13.65 | 51.25 | -43.55 | 77.09 | 0.6892 | 768.2 | 552.6 | |
| 0.00 | 11.37 | 0.00 | 7.86 | 15.86 | 50.60 | -44.20 | 74.00 | 0.6999 | 611.0 | 552.3 | |
| 6.41 | -48.00 | 4.41 | -48.00 | 15.19 | 50.74 | -44.06 | 74.94 | 0.6973 | 1054.0 | 999999 | |
| 10.37 | -48.00 | 7.14 | -48.00 | 14.29 | 50.75 | -44.06 | 76.22 | 0.6961 | 968.9 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.80 | 13.47 | 50.94 | -43.86 | 77.38 | 0.6928 | 546.0 | 430.8 | |
| 5.68 | -48.00 | 3.93 | -48.00 | 14.96 | 50.54 | -44.27 | 75.30 | 0.6995 | 1035.0 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.49 | 13.77 | 50.75 | -44.06 | 76.98 | 0.6956 | 343.0 | 343.3 | |
| 0.00 | 2.53 | 0.00 | 1.76 | 15.60 | 50.06 | -44.75 | 74.46 | 0.7061 | 682.0 | 469.4 | |
| 0.00 | 0.36 | 0.00 | 0.26 | 17.58 | 49.42 | -45.38 | 71.80 | 0.7166 | 460.0 | 360.8 | |
| 0.00 | 0.99 | 0.00 | 0.69 | 15.41 | 49.97 | -44.83 | 74.74 | 0.7068 | 530.0 | 463.7 | |
| 1.98 | -48.00 | 1.38 | -48.00 | 14.52 | 50.12 | -44.69 | 75.98 | 0.7039 | 696.9 | 999999 | |
| 1.26 | -48.00 | 0.88 | -48.00 | 14.25 | 50.15 | -44.66 | 76.37 | 0.7033 | 680.0 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.63 | 14.76 | 49.97 | -44.83 | 75.66 | 0.7060 | 640.0 | 503.4 | |
| 0.81 | 16.51 | 0.57 | 11.61 | 15.17 | 49.68 | -45.12 | 75.12 | 0.7100 | 789.2 | 459.5 | |
| 5.95 | -62.00 | 4.19 | -62.00 | 15.21 | 49.45 | -45.36 | 75.10 | 0.7128 | 582.8 | 999999 | |
| 3.88 | 8.21 | 2.72 | 5.76 | 14.54 | 49.54 | -45.27 | 76.03 | 0.7109 | 575.4 | 390.4 | |
| 0.00 | 1.08 | 0.00 | 0.76 | 13.90 | 49.70 | -45.11 | 76.91 | 0.7083 | 490.0 | 432.7 | |
| 0.00 | 0.54 | 0.00 | 0.38 | 14.54 | 49.18 | -45.63 | 76.07 | 0.7152 | 226.0 | 165.2 | |
| 0.00 | 0.72 | 0.00 | 0.52 | 13.80 | 48.46 | -46.34 | 77.17 | 0.7228 | 405.0 | 309.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
