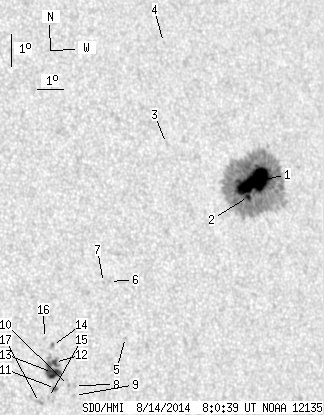

SDO HMI 2014-08-14 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.31 | 360.21 | 42.45 | 229.83 | 14.76 | 133.10 | 38.84 | 285.24 | 0.6305 | -516.2 | -267.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.08 | 313.40 | 31.74 | 202.58 | 15.35 | 134.08 | 39.82 | 286.07 | 0.6449 | -1271.8 | -355.0 | |
| 2.71 | -1.00 | 1.74 | -1.00 | 14.91 | 133.73 | 39.48 | 285.46 | 0.6397 | -1027.5 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.56 | 16.76 | 130.85 | 36.59 | 289.14 | 0.6064 | -232.0 | -271.7 | |
| 0.00 | 1.08 | 0.00 | 0.69 | 19.87 | 131.51 | 37.26 | 293.85 | 0.6247 | -400.0 | -321.1 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 10.95 | 128.25 | 33.99 | 279.84 | 0.5592 | 590.0 | 495.0 | |
| 0.00 | 1.62 | 0.00 | 0.97 | 12.69 | 127.90 | 33.64 | 283.01 | 0.5568 | 753.0 | 571.1 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 12.67 | 127.67 | 33.41 | 283.03 | 0.5536 | 513.0 | 411.5 | |
| 0.00 | 2.17 | 0.00 | 1.26 | 9.61 | 126.21 | 31.95 | 277.62 | 0.5284 | 497.0 | 510.0 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 9.31 | 126.17 | 31.92 | 277.04 | 0.5278 | 668.0 | 583.0 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 9.63 | 125.99 | 31.73 | 277.66 | 0.5253 | 776.0 | 649.1 | |
| 1.26 | 2.89 | 0.73 | 1.67 | 9.56 | 125.51 | 31.26 | 277.59 | 0.5182 | 903.6 | 718.0 | |
| 2.44 | 25.71 | 1.41 | 14.87 | 10.35 | 125.56 | 31.31 | 279.11 | 0.5197 | 803.6 | 697.1 | |
| 11.82 | -12.00 | 6.83 | -12.00 | 10.06 | 125.46 | 31.20 | 278.55 | 0.5178 | 1028.7 | 999999 | |
| 0.00 | 2.44 | 0.00 | 1.41 | 10.87 | 125.55 | 31.29 | 280.11 | 0.5202 | 686.0 | 515.1 | |
| 0.00 | 1.44 | 0.00 | 0.83 | 9.31 | 125.23 | 30.98 | 277.12 | 0.5139 | 792.0 | 644.8 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 11.10 | 125.29 | 31.03 | 280.60 | 0.5167 | -199.0 | -159.9 | |
| 0.00 | 3.43 | 0.00 | 1.97 | 9.17 | 124.90 | 30.64 | 276.89 | 0.5088 | 784.0 | 667.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
