SDO HMI 2014-08-14 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.15 | 362.51 | 60.74 | 235.17 | 13.89 | 54.17 | -40.08 | 76.20 | 0.6445 | -38.8 | 90.2 | |
|
previous
or next observation for the same group /

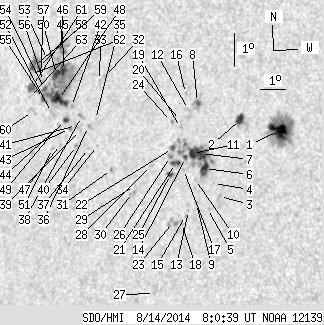

back to the solar disc SDO HMI 2014-08-14 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.86 | 71.81 | 10.76 | 43.24 | 13.94 | 59.78 | -34.48 | 74.98 | 0.5710 | -1133.4 | -476.2 | |
| 5.23 | 10.10 | 3.21 | 6.20 | 14.18 | 58.24 | -36.02 | 74.95 | 0.5926 | -882.1 | -400.9 | |
| 0.00 | 1.26 | 0.00 | 0.78 | 11.79 | 57.83 | -36.43 | 79.05 | 0.5943 | -775.0 | -684.2 | |
| 0.00 | 0.90 | 0.00 | 0.56 | 12.17 | 57.53 | -36.72 | 78.45 | 0.5988 | -541.0 | -495.3 | |
| 0.00 | 0.54 | 0.00 | 0.33 | 11.40 | 57.42 | -36.84 | 79.76 | 0.5994 | -494.0 | -509.8 | |
| 7.58 | 60.44 | 4.71 | 37.74 | 12.60 | 57.11 | -37.15 | 77.80 | 0.6051 | -998.7 | -605.4 | |
| 9.47 | -6.00 | 5.90 | -6.00 | 13.05 | 56.88 | -37.38 | 77.11 | 0.6089 | -941.3 | 999999 | |
| 1.44 | 6.22 | 0.91 | 3.91 | 14.59 | 56.47 | -37.79 | 74.69 | 0.6170 | -866.4 | -630.6 | |
| 0.00 | 1.08 | 0.00 | 0.67 | 11.52 | 56.97 | -37.28 | 79.61 | 0.6057 | -756.0 | -680.3 | |
| 0.00 | 1.08 | 0.00 | 0.67 | 12.25 | 56.82 | -37.44 | 78.44 | 0.6086 | -563.0 | -442.4 | |
| 6.22 | -6.00 | 3.89 | -6.00 | 13.03 | 56.57 | -37.69 | 77.20 | 0.6131 | -842.9 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.63 | 14.35 | 56.16 | -38.10 | 75.13 | 0.6207 | -598.0 | -492.9 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 11.29 | 56.70 | -37.56 | 80.03 | 0.6092 | -613.0 | -578.7 | |
| 1.26 | -6.00 | 0.79 | -6.00 | 12.89 | 56.31 | -37.94 | 77.47 | 0.6162 | -714.4 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.79 | 11.13 | 56.60 | -37.65 | 80.30 | 0.6103 | -667.0 | -548.7 | |
| 0.00 | 1.08 | 0.00 | 0.68 | 14.83 | 55.94 | -38.32 | 74.42 | 0.6245 | -499.0 | -341.0 | |
| 0.00 | 1.17 | 0.00 | 0.74 | 12.52 | 56.30 | -37.96 | 78.07 | 0.6159 | 383.0 | 282.0 | |
| 0.00 | 1.17 | 0.00 | 0.73 | 10.87 | 56.48 | -37.77 | 80.73 | 0.6117 | -661.0 | -523.1 | |
| 0.00 | 1.17 | 0.00 | 0.74 | 13.79 | 55.95 | -38.31 | 76.09 | 0.6225 | -703.0 | -589.2 | |
| 0.00 | 0.54 | 0.00 | 0.34 | 14.00 | 55.91 | -38.35 | 75.75 | 0.6234 | -521.0 | -445.7 | |
| 3.16 | 5.32 | 1.99 | 3.36 | 12.68 | 55.95 | -38.30 | 77.86 | 0.6208 | -637.5 | -499.7 | |
| 1.62 | 2.98 | 1.03 | 1.88 | 13.13 | 55.75 | -38.50 | 77.18 | 0.6240 | -573.2 | -410.4 | |
| 0.00 | 6.41 | 0.00 | 4.02 | 10.88 | 56.13 | -38.13 | 80.75 | 0.6165 | -450.0 | -442.5 | |
| 0.00 | 1.08 | 0.00 | 0.69 | 13.94 | 55.56 | -38.70 | 75.91 | 0.6279 | -450.0 | -413.7 | |
| 1.80 | 3.43 | 1.14 | 2.16 | 12.33 | 55.82 | -38.44 | 78.44 | 0.6222 | -546.4 | -348.1 | |
| 0.00 | 2.62 | 0.00 | 1.66 | 12.88 | 55.72 | -38.54 | 77.58 | 0.6242 | -440.0 | -340.0 | |
| 0.00 | 1.17 | 0.00 | 0.74 | 8.68 | 55.72 | -38.54 | 84.33 | 0.6212 | -55.0 | -145.0 | |
| 0.00 | 1.71 | 0.00 | 1.09 | 12.55 | 55.02 | -39.24 | 78.20 | 0.6330 | 492.0 | 389.9 | |
| 0.00 | 0.81 | 0.00 | 0.52 | 11.90 | 54.45 | -39.81 | 79.30 | 0.6399 | 532.0 | 384.6 | |
| 0.00 | 2.44 | 0.00 | 1.57 | 11.68 | 54.40 | -39.85 | 79.64 | 0.6402 | 788.0 | 637.3 | |
| 0.00 | 1.44 | 0.00 | 0.94 | 12.31 | 53.43 | -40.83 | 78.76 | 0.6535 | 540.0 | 509.2 | |
| 0.00 | 1.26 | 0.00 | 0.84 | 15.12 | 52.54 | -41.72 | 74.66 | 0.6685 | 727.0 | 626.1 | |
| 0.00 | 0.81 | 0.00 | 0.54 | 14.98 | 52.36 | -41.90 | 74.89 | 0.6705 | 677.0 | 558.1 | |
| 0.00 | 0.63 | 0.00 | 0.42 | 13.00 | 52.72 | -41.54 | 77.80 | 0.6634 | -268.0 | -219.1 | |
| 0.00 | 0.45 | 0.00 | 0.30 | 13.78 | 52.47 | -41.79 | 76.66 | 0.6675 | 650.0 | 599.0 | |
| 0.00 | 1.35 | 0.00 | 0.90 | 13.55 | 52.22 | -42.03 | 77.04 | 0.6702 | 850.0 | 689.1 | |
| 0.00 | 0.81 | 0.00 | 0.54 | 12.88 | 52.36 | -41.89 | 78.02 | 0.6677 | 160.0 | 149.8 | |
| 0.00 | 2.98 | 0.00 | 1.99 | 13.83 | 51.86 | -42.39 | 76.67 | 0.6751 | 736.0 | 612.7 | |
| 0.00 | 0.81 | 0.00 | 0.54 | 13.40 | 51.92 | -42.34 | 77.30 | 0.6739 | 636.0 | 509.1 | |
| 0.00 | 2.35 | 0.00 | 1.57 | 12.94 | 51.85 | -42.41 | 78.00 | 0.6743 | 781.0 | 623.7 | |
| 0.00 | 2.53 | 0.00 | 1.69 | 13.54 | 51.72 | -42.54 | 77.12 | 0.6766 | 386.0 | 527.9 | |
| 0.00 | 1.44 | 0.00 | 0.97 | 14.10 | 51.37 | -42.88 | 76.34 | 0.6815 | 730.0 | 588.8 | |
| 0.00 | 1.44 | 0.00 | 0.97 | 13.43 | 51.44 | -42.82 | 77.32 | 0.6799 | 775.0 | 646.6 | |
| 1.98 | 3.16 | 1.34 | 2.13 | 13.66 | 51.22 | -43.04 | 77.01 | 0.6829 | 745.0 | 569.6 | |
| 6.41 | 112.14 | 4.37 | 76.64 | 15.17 | 50.77 | -43.49 | 74.88 | 0.6904 | 1044.6 | 659.7 | |
| 1.17 | -45.00 | 0.81 | -45.00 | 15.86 | 50.50 | -43.76 | 73.93 | 0.6947 | 709.4 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.49 | 12.91 | 51.17 | -43.09 | 78.11 | 0.6828 | 614.0 | 570.1 | |
| 11.64 | -45.00 | 7.93 | -45.00 | 14.27 | 50.77 | -43.48 | 76.18 | 0.6891 | 963.8 | 999999 | |
| 0.00 | 2.35 | 0.00 | 1.59 | 13.48 | 50.96 | -43.30 | 77.30 | 0.6859 | 366.0 | 319.4 | |
| 5.95 | -45.00 | 4.08 | -45.00 | 15.03 | 50.50 | -43.76 | 75.13 | 0.6934 | 1009.5 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.80 | 12.77 | 50.86 | -43.40 | 78.35 | 0.6865 | 503.0 | 357.6 | |
| 0.00 | 3.25 | 0.00 | 2.22 | 13.86 | 50.57 | -43.69 | 76.81 | 0.6911 | 465.0 | 485.6 | |
| 0.00 | 0.90 | 0.00 | 0.62 | 15.45 | 49.99 | -44.26 | 74.60 | 0.7001 | 528.0 | 435.7 | |
| 1.80 | -45.00 | 1.24 | -45.00 | 14.56 | 50.09 | -44.16 | 75.85 | 0.6977 | 725.3 | 999999 | |
| 2.62 | -45.00 | 1.80 | -45.00 | 14.25 | 50.12 | -44.13 | 76.29 | 0.6970 | 664.2 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.94 | 14.77 | 50.00 | -44.26 | 75.57 | 0.6992 | 569.0 | 492.1 | |
| 0.00 | 0.63 | 0.00 | 0.44 | 14.85 | 49.84 | -44.42 | 75.47 | 0.7011 | 438.0 | 457.9 | |
| 0.90 | 13.44 | 0.63 | 9.37 | 15.18 | 49.67 | -44.59 | 75.03 | 0.7036 | 778.7 | 508.8 | |
| 1.89 | -58.00 | 1.32 | -58.00 | 15.16 | 49.41 | -44.85 | 75.10 | 0.7067 | 583.3 | 999999 | |
| 0.00 | 4.33 | 0.00 | 3.00 | 13.82 | 49.75 | -44.51 | 76.95 | 0.7011 | 443.0 | 397.0 | |
| 4.15 | 8.84 | 2.89 | 6.15 | 14.55 | 49.52 | -44.74 | 75.95 | 0.7046 | 548.5 | 400.2 | |
| 0.00 | 1.26 | 0.00 | 0.88 | 14.94 | 49.38 | -44.88 | 75.41 | 0.7068 | 424.0 | 374.3 | |
| 0.00 | 0.90 | 0.00 | 0.63 | 14.24 | 49.51 | -44.75 | 76.39 | 0.7043 | 390.0 | 323.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
