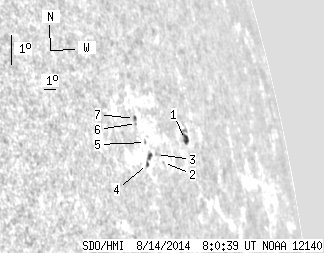

SDO HMI 2014-08-14 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.61 | 17.13 | 5.42 | 23.89 | 13.50 | 164.30 | 70.04 | 281.98 | 0.9353 | -107.7 | -32.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.07 | 6.59 | 4.72 | 10.12 | 13.49 | 166.41 | 72.15 | 282.05 | 0.9478 | -388.6 | -338.0 | |
| 0.00 | 0.27 | 0.00 | 0.37 | 13.04 | 163.96 | 69.70 | 281.46 | 0.9338 | -328.0 | -327.7 | |
| 0.00 | 1.35 | 0.00 | 1.82 | 13.34 | 163.51 | 69.26 | 281.77 | 0.9311 | -280.0 | -278.7 | |
| 0.54 | 5.68 | 0.70 | 7.40 | 13.12 | 162.60 | 68.34 | 281.51 | 0.9253 | 289.8 | 76.7 | |
| 0.00 | 1.08 | 0.00 | 1.41 | 13.78 | 162.83 | 68.57 | 282.23 | 0.9267 | 318.0 | 264.7 | |
| 0.00 | 0.36 | 0.00 | 0.46 | 14.42 | 162.46 | 68.21 | 282.90 | 0.9242 | 494.0 | 469.8 | |
| 0.00 | 1.80 | 0.00 | 2.31 | 14.58 | 162.40 | 68.14 | 283.08 | 0.9238 | 305.0 | 321.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
