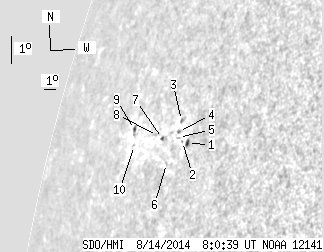

SDO HMI 2014-08-14 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.79 | 14.33 | 4.12 | 21.24 | 16.34 | 22.75 | -71.51 | 74.95 | 0.9432 | -52.0 | -17.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.35 | 3.07 | 1.79 | 4.07 | 16.35 | 25.25 | -69.01 | 75.00 | 0.9291 | -309.5 | -315.7 | |
| 0.00 | 0.72 | 0.00 | 0.97 | 16.36 | 24.78 | -69.47 | 74.97 | 0.9319 | -234.0 | -210.4 | |
| 0.00 | 1.80 | 0.00 | 2.50 | 16.97 | 24.20 | -70.06 | 74.32 | 0.9354 | -306.0 | -218.4 | |
| 0.00 | 1.35 | 0.00 | 1.87 | 16.62 | 24.21 | -70.05 | 74.69 | 0.9354 | -171.0 | -105.5 | |
| 0.00 | 0.63 | 0.00 | 0.87 | 16.44 | 24.35 | -69.91 | 74.88 | 0.9346 | -303.0 | -247.7 | |
| 0.00 | 0.36 | 0.00 | 0.51 | 15.58 | 23.91 | -70.35 | 75.80 | 0.9373 | 237.0 | 191.0 | |
| 0.54 | 1.44 | 0.79 | 2.12 | 16.26 | 22.95 | -71.30 | 75.05 | 0.9426 | -141.0 | -29.0 | |
| 0.00 | 0.45 | 0.00 | 0.68 | 16.30 | 22.41 | -71.84 | 75.00 | 0.9456 | 211.0 | 214.8 | |
| 0.90 | 3.52 | 1.54 | 5.99 | 16.22 | 19.95 | -74.31 | 75.00 | 0.9583 | 178.5 | 193.7 | |
| 0.00 | 0.99 | 0.00 | 1.66 | 15.77 | 20.41 | -73.85 | 75.49 | 0.9561 | 378.0 | 306.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
