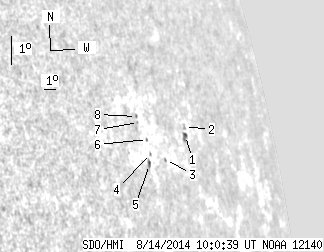

SDO HMI 2014-08-14 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.17 | 11.90 | 1.91 | 17.73 | 13.59 | 164.71 | 71.55 | 282.13 | 0.9440 | -16.8 | -46.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.17 | 3.88 | 1.91 | 6.30 | 13.55 | 166.52 | 73.36 | 282.16 | 0.9542 | -340.1 | -292.4 | |
| 0.00 | 1.53 | 0.00 | 2.52 | 13.82 | 166.63 | 73.47 | 282.45 | 0.9547 | -286.0 | -178.9 | |
| 0.00 | 1.08 | 0.00 | 1.57 | 13.06 | 164.09 | 70.93 | 281.54 | 0.9411 | -452.0 | -395.1 | |
| 0.00 | 0.90 | 0.00 | 1.24 | 13.38 | 162.89 | 69.73 | 281.83 | 0.9339 | 93.0 | 39.6 | |
| 0.00 | 2.26 | 0.00 | 3.05 | 13.06 | 162.60 | 69.44 | 281.48 | 0.9322 | 301.0 | 225.2 | |
| 0.00 | 0.45 | 0.00 | 0.62 | 13.81 | 162.90 | 69.74 | 282.29 | 0.9339 | 180.0 | 225.4 | |
| 0.00 | 0.63 | 0.00 | 0.85 | 14.39 | 162.48 | 69.32 | 282.90 | 0.9313 | 375.0 | 364.7 | |
| 0.00 | 1.17 | 0.00 | 1.58 | 14.58 | 162.43 | 69.27 | 283.11 | 0.9309 | 289.0 | 272.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
