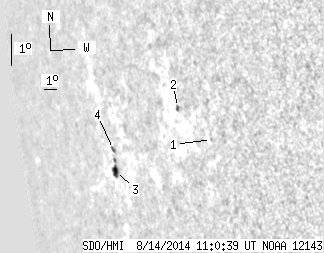

SDO HMI 2014-08-14 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.50 | 14.43 | 8.73 | 21.63 | -6.44 | 22.97 | -69.64 | 99.21 | 0.9443 | -186.9 | -52.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 1.01 | -5.11 | 29.87 | -62.74 | 99.04 | 0.8983 | 299.0 | 336.0 | |
| 0.00 | 2.16 | 0.00 | 2.62 | -4.36 | 27.63 | -64.98 | 97.81 | 0.9137 | 575.0 | 443.8 | |
| 4.51 | 8.93 | 7.16 | 14.16 | -6.96 | 21.89 | -70.72 | 99.57 | 0.9515 | -324.6 | -237.3 | |
| 0.99 | 2.44 | 1.57 | 3.84 | -6.27 | 21.94 | -70.67 | 98.86 | 0.9507 | -354.2 | -228.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
