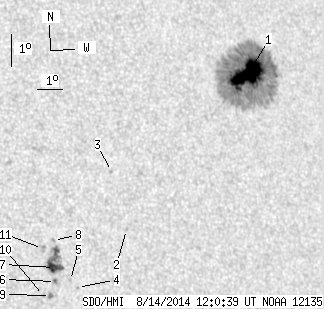

SDO HMI 2014-08-14 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.24 | 353.41 | 39.55 | 232.70 | 14.76 | 133.16 | 41.10 | 284.80 | 0.6594 | -576.6 | -217.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.13 | 310.04 | 34.15 | 206.95 | 15.34 | 134.09 | 42.03 | 285.61 | 0.6727 | -1164.4 | -317.9 | |
| 0.00 | 1.17 | 0.00 | 0.72 | 10.98 | 128.36 | 36.30 | 279.60 | 0.5916 | 673.0 | 513.2 | |
| 0.00 | 1.35 | 0.00 | 0.83 | 12.77 | 128.06 | 36.00 | 282.69 | 0.5898 | 788.0 | 662.3 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 9.34 | 126.29 | 34.23 | 276.94 | 0.5613 | 643.0 | 559.3 | |
| 0.00 | 1.26 | 0.00 | 0.75 | 9.57 | 126.06 | 34.00 | 277.36 | 0.5581 | 729.0 | 608.0 | |
| 0.00 | 1.71 | 0.00 | 1.01 | 9.57 | 125.50 | 33.44 | 277.42 | 0.5501 | 907.0 | 784.1 | |
| 9.11 | 27.60 | 5.40 | 16.36 | 10.00 | 125.52 | 33.45 | 278.19 | 0.5506 | 971.1 | 626.9 | |
| 0.00 | 1.44 | 0.00 | 0.86 | 10.82 | 125.58 | 33.52 | 279.68 | 0.5523 | 667.0 | 537.3 | |
| 0.00 | 2.89 | 0.00 | 1.70 | 9.16 | 125.27 | 33.21 | 276.68 | 0.5465 | 888.0 | 791.3 | |
| 0.00 | 1.44 | 0.00 | 0.85 | 9.18 | 125.02 | 32.96 | 276.72 | 0.5428 | 732.0 | 689.4 | |
| 0.00 | 3.34 | 0.00 | 1.97 | 10.61 | 125.14 | 33.08 | 279.34 | 0.5458 | 501.0 | 551.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
