SDO HMI 2014-08-14 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.51 | 380.96 | 59.17 | 240.70 | 14.02 | 53.85 | -38.21 | 75.64 | 0.6202 | -105.8 | 108.8 | |
|
previous
or next observation for the same group /

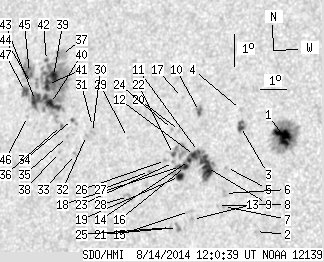

back to the solar disc SDO HMI 2014-08-14 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.67 | 71.51 | 10.97 | 42.00 | 13.95 | 59.84 | -32.22 | 74.33 | 0.5395 | -1071.6 | -456.7 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 11.00 | 59.22 | -32.84 | 79.90 | 0.5428 | -712.0 | -583.2 | |
| 3.43 | 7.48 | 2.05 | 4.48 | 14.16 | 58.20 | -33.86 | 74.43 | 0.5630 | -833.3 | -666.4 | |
| 0.00 | 1.53 | 0.00 | 0.92 | 14.68 | 58.11 | -33.95 | 73.55 | 0.5655 | -365.0 | -319.9 | |
| 0.00 | 1.26 | 0.00 | 0.76 | 12.88 | 57.87 | -34.19 | 76.77 | 0.5648 | -669.0 | -575.6 | |
| 0.00 | 3.07 | 0.00 | 1.83 | 12.09 | 57.92 | -34.14 | 78.16 | 0.5629 | -704.0 | -673.6 | |
| 0.00 | 1.26 | 0.00 | 0.75 | 11.69 | 57.94 | -34.12 | 78.86 | 0.5620 | -799.0 | -660.0 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 11.70 | 57.71 | -34.35 | 78.87 | 0.5653 | -532.0 | -506.0 | |
| 17.59 | 49.60 | 10.63 | 30.10 | 12.83 | 57.12 | -34.94 | 77.01 | 0.5752 | -955.4 | -655.8 | |
| 1.71 | 5.41 | 1.05 | 3.30 | 14.52 | 56.57 | -35.49 | 74.25 | 0.5862 | -828.6 | -643.8 | |
| 0.81 | -9.00 | 0.49 | -9.00 | 13.30 | 56.74 | -35.32 | 76.28 | 0.5813 | -693.1 | 999999 | |
| 3.61 | -9.00 | 2.20 | -9.00 | 13.17 | 56.61 | -35.45 | 76.54 | 0.5829 | -866.5 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.26 | 11.22 | 56.83 | -35.23 | 79.85 | 0.5770 | -665.0 | -553.0 | |
| 1.44 | -9.00 | 0.88 | -9.00 | 13.00 | 56.45 | -35.61 | 76.85 | 0.5849 | -683.7 | 999999 | |
| 0.00 | 3.07 | 0.00 | 1.86 | 11.46 | 56.68 | -35.38 | 79.47 | 0.5793 | -707.0 | -485.1 | |
| 2.62 | -9.00 | 1.60 | -9.00 | 12.81 | 56.32 | -35.74 | 77.20 | 0.5862 | -808.1 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.50 | 14.90 | 55.83 | -36.23 | 73.79 | 0.5969 | -484.0 | -355.4 | |
| 1.08 | -9.00 | 0.66 | -9.00 | 12.80 | 56.13 | -35.93 | 77.26 | 0.5888 | -618.8 | 999999 | |
| 4.24 | 8.75 | 2.59 | 5.35 | 12.49 | 56.14 | -35.92 | 77.78 | 0.5882 | -508.1 | -25.4 | |
| 0.00 | 1.62 | 0.00 | 1.00 | 13.89 | 55.91 | -36.15 | 75.47 | 0.5938 | -658.0 | -529.1 | |
| 0.00 | 3.97 | 0.00 | 2.42 | 10.94 | 56.30 | -35.76 | 80.40 | 0.5841 | -641.0 | -548.0 | |
| 1.17 | 14.43 | 0.72 | 8.85 | 13.15 | 55.80 | -36.26 | 76.74 | 0.5939 | -580.5 | -554.2 | |
| 0.00 | 1.80 | 0.00 | 1.11 | 12.90 | 55.85 | -36.21 | 77.14 | 0.5929 | -528.0 | -397.7 | |
| 0.00 | 1.35 | 0.00 | 0.83 | 13.90 | 55.63 | -36.43 | 75.51 | 0.5976 | -521.0 | -397.3 | |
| 0.00 | 1.17 | 0.00 | 0.72 | 10.92 | 56.03 | -36.03 | 80.46 | 0.5878 | -562.0 | -423.6 | |
| 0.00 | 1.44 | 0.00 | 0.89 | 12.94 | 55.53 | -36.53 | 77.13 | 0.5973 | -409.0 | -270.9 | |
| 0.00 | 1.08 | 0.00 | 0.67 | 12.57 | 54.97 | -37.09 | 77.85 | 0.6044 | 670.0 | 533.7 | |
| 0.00 | 3.70 | 0.00 | 2.31 | 11.76 | 54.28 | -37.78 | 79.28 | 0.6127 | 764.0 | 690.4 | |
| 0.00 | 0.27 | 0.00 | 0.17 | 13.54 | 53.93 | -38.13 | 76.44 | 0.6198 | -457.0 | -389.3 | |
| 0.00 | 2.34 | 0.00 | 1.51 | 13.60 | 52.51 | -39.55 | 76.60 | 0.6385 | 816.0 | 614.2 | |
| 0.00 | 1.35 | 0.00 | 0.87 | 13.78 | 52.47 | -39.59 | 76.32 | 0.6393 | 530.0 | 464.1 | |
| 0.00 | 1.44 | 0.00 | 0.93 | 13.49 | 52.29 | -39.78 | 76.80 | 0.6413 | 720.0 | 593.9 | |
| 0.00 | 1.98 | 0.00 | 1.28 | 12.88 | 51.96 | -40.11 | 77.79 | 0.6448 | 448.0 | 438.2 | |
| 0.72 | 3.34 | 0.47 | 2.17 | 13.94 | 51.62 | -40.44 | 76.22 | 0.6505 | 685.5 | 579.5 | |
| 0.00 | 1.17 | 0.00 | 0.76 | 13.41 | 51.52 | -40.54 | 77.05 | 0.6510 | 666.0 | 597.2 | |
| 0.54 | 141.04 | 0.35 | 93.37 | 13.72 | 51.21 | -40.85 | 76.61 | 0.6554 | 580.8 | 586.8 | |
| 0.00 | 10.55 | 0.00 | 6.98 | 15.88 | 50.71 | -41.35 | 73.44 | 0.6652 | 713.0 | 508.7 | |
| 0.00 | 1.08 | 0.00 | 0.71 | 12.90 | 51.30 | -40.76 | 77.86 | 0.6533 | 652.0 | 590.2 | |
| 6.49 | -36.00 | 4.30 | -36.00 | 15.19 | 50.55 | -41.51 | 74.51 | 0.6660 | 1054.3 | 999999 | |
| 11.18 | -36.00 | 7.39 | -36.00 | 14.36 | 50.61 | -41.45 | 75.74 | 0.6639 | 936.3 | 999999 | |
| 5.41 | -36.00 | 3.59 | -36.00 | 14.93 | 50.36 | -41.70 | 74.94 | 0.6680 | 950.9 | 999999 | |
| 0.72 | 1.62 | 0.48 | 1.08 | 15.65 | 50.14 | -41.92 | 73.90 | 0.6719 | 526.4 | 448.7 | |
| 8.93 | -36.00 | 5.96 | -36.00 | 14.40 | 49.97 | -42.09 | 75.78 | 0.6720 | 740.3 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.67 | 14.91 | 49.68 | -42.38 | 75.08 | 0.6764 | 529.0 | 442.0 | |
| 0.00 | 24.35 | 0.00 | 16.38 | 15.23 | 49.52 | -42.55 | 74.63 | 0.6789 | 720.0 | 448.4 | |
| 0.00 | 1.26 | 0.00 | 0.84 | 13.89 | 49.75 | -42.31 | 76.57 | 0.6742 | 588.0 | 424.5 | |
| 4.15 | -36.00 | 2.79 | -36.00 | 14.64 | 49.49 | -42.57 | 75.50 | 0.6784 | 561.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
