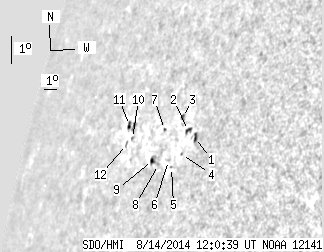

SDO HMI 2014-08-14 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.85 | 28.75 | 7.79 | 38.77 | 16.10 | 22.63 | -69.43 | 75.24 | 0.9311 | -6.1 | 88.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.44 | 3.52 | 1.73 | 4.21 | 16.49 | 25.68 | -66.38 | 74.85 | 0.9119 | -440.3 | -382.0 | |
| 1.35 | 3.52 | 1.66 | 4.31 | 16.64 | 25.00 | -67.06 | 74.69 | 0.9165 | -389.6 | -273.9 | |
| 0.00 | 2.34 | 0.00 | 2.96 | 16.97 | 24.26 | -67.80 | 74.33 | 0.9214 | -186.0 | -166.8 | |
| 0.00 | 0.72 | 0.00 | 0.89 | 15.88 | 24.96 | -67.10 | 75.52 | 0.9168 | -122.0 | -149.0 | |
| 0.00 | 0.99 | 0.00 | 1.25 | 15.42 | 24.44 | -67.62 | 76.02 | 0.9203 | -355.0 | -252.9 | |
| 0.00 | 1.71 | 0.00 | 2.18 | 15.60 | 24.06 | -68.00 | 75.82 | 0.9227 | 345.0 | 275.2 | |
| 0.00 | 1.08 | 0.00 | 1.43 | 16.47 | 23.07 | -68.99 | 74.86 | 0.9290 | -198.0 | -118.7 | |
| 0.00 | 0.81 | 0.00 | 1.06 | 15.40 | 23.34 | -68.72 | 76.03 | 0.9274 | 296.0 | 274.4 | |
| 1.53 | 4.60 | 2.06 | 6.17 | 15.46 | 22.76 | -69.30 | 75.95 | 0.9310 | 325.5 | 378.5 | |
| 0.00 | 1.44 | 0.00 | 2.15 | 15.91 | 20.49 | -71.57 | 75.41 | 0.9442 | 369.0 | 403.1 | |
| 1.53 | 6.13 | 2.34 | 9.29 | 16.26 | 19.87 | -72.19 | 75.03 | 0.9475 | 172.3 | 288.2 | |
| 0.00 | 1.89 | 0.00 | 2.87 | 15.68 | 20.07 | -71.99 | 75.65 | 0.9465 | 89.0 | 69.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
