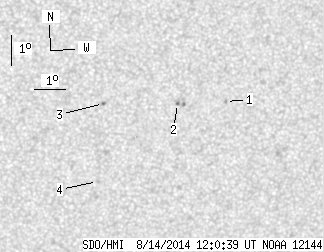

SDO HMI 2014-08-14 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.72 | 8.74 | 0.40 | 4.88 | -18.12 | 103.77 | 11.71 | 204.91 | 0.4609 | 308.2 | 415.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.81 | -17.66 | 105.96 | 13.90 | 209.32 | 0.4694 | 764.0 | 676.8 | |
| 0.36 | 4.15 | 0.20 | 2.31 | -17.68 | 104.39 | 12.33 | 206.47 | 0.4583 | 828.0 | 662.5 | |
| 0.36 | 1.62 | 0.20 | 0.90 | -17.62 | 101.98 | 9.92 | 201.90 | 0.4421 | -841.2 | -705.8 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -20.25 | 101.94 | 9.88 | 199.69 | 0.4798 | 608.0 | 473.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
