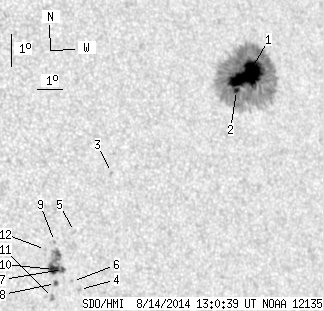

SDO HMI 2014-08-14 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.13 | 345.69 | 39.79 | 229.79 | 14.80 | 133.26 | 41.75 | 284.78 | 0.6679 | -638.8 | -226.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.51 | 307.38 | 32.69 | 206.90 | 15.35 | 134.13 | 42.62 | 285.53 | 0.6801 | -1145.5 | -310.4 | |
| 2.34 | -1.00 | 1.56 | -1.00 | 14.93 | 133.56 | 42.05 | 285.01 | 0.6723 | -1086.4 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.72 | 12.80 | 128.05 | 36.54 | 282.63 | 0.5972 | 744.0 | 624.2 | |
| 0.00 | 1.62 | 0.00 | 0.98 | 9.33 | 126.34 | 34.83 | 276.89 | 0.5698 | 622.0 | 533.2 | |
| 0.00 | 1.53 | 0.00 | 0.92 | 11.10 | 126.37 | 34.86 | 279.99 | 0.5717 | -304.0 | -360.8 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 9.59 | 126.11 | 34.60 | 277.36 | 0.5666 | 788.0 | 592.8 | |
| 1.35 | 25.61 | 0.81 | 15.28 | 9.98 | 125.78 | 34.27 | 278.07 | 0.5622 | 674.9 | 689.7 | |
| 1.17 | 2.89 | 0.70 | 1.72 | 9.57 | 125.47 | 33.96 | 277.37 | 0.5575 | 750.6 | 561.5 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 10.85 | 125.59 | 34.08 | 279.64 | 0.5603 | 623.0 | 492.4 | |
| 6.76 | -7.00 | 4.03 | -7.00 | 10.00 | 125.44 | 33.93 | 278.14 | 0.5575 | 1011.0 | 999999 | |
| 0.00 | 2.61 | 0.00 | 1.55 | 9.16 | 125.31 | 33.80 | 276.63 | 0.5550 | 863.0 | 765.1 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 10.63 | 125.22 | 33.71 | 279.29 | 0.5549 | 769.0 | 651.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
