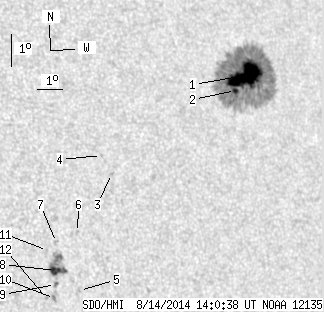

SDO HMI 2014-08-14 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.35 | 338.33 | 37.10 | 226.56 | 14.79 | 133.15 | 42.20 | 284.67 | 0.6732 | -651.6 | -208.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.70 | 296.70 | 31.72 | 201.49 | 15.38 | 134.10 | 43.15 | 285.48 | 0.6865 | -1162.8 | -312.9 | |
| 2.61 | -1.00 | 1.76 | -1.00 | 14.95 | 133.57 | 42.61 | 284.95 | 0.6793 | -1088.7 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.23 | 12.80 | 128.05 | 37.09 | 282.52 | 0.6046 | 743.0 | 591.5 | |
| 0.00 | 1.08 | 0.00 | 0.67 | 13.37 | 127.76 | 36.80 | 283.53 | 0.6016 | 548.0 | 418.5 | |
| 0.00 | 1.35 | 0.00 | 0.82 | 9.33 | 126.31 | 35.35 | 276.85 | 0.5772 | 682.0 | 508.8 | |
| 0.00 | 1.53 | 0.00 | 0.93 | 11.09 | 126.46 | 35.51 | 279.89 | 0.5807 | -552.0 | -389.0 | |
| 0.00 | 1.89 | 0.00 | 1.14 | 10.84 | 125.63 | 34.68 | 279.56 | 0.5688 | 579.0 | 535.6 | |
| 6.04 | 26.78 | 3.62 | 16.08 | 10.00 | 125.49 | 34.53 | 278.08 | 0.5660 | 1000.3 | 675.2 | |
| 0.00 | 2.34 | 0.00 | 1.41 | 9.57 | 125.44 | 34.48 | 277.33 | 0.5650 | 924.0 | 731.8 | |
| 0.00 | 2.61 | 0.00 | 1.56 | 9.15 | 125.35 | 34.39 | 276.59 | 0.5635 | 799.0 | 731.5 | |
| 0.00 | 0.54 | 0.00 | 0.32 | 10.62 | 125.27 | 34.31 | 279.21 | 0.5634 | 645.0 | 556.0 | |
| 0.00 | 1.53 | 0.00 | 0.91 | 9.20 | 125.06 | 34.10 | 276.69 | 0.5594 | 772.0 | 628.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
