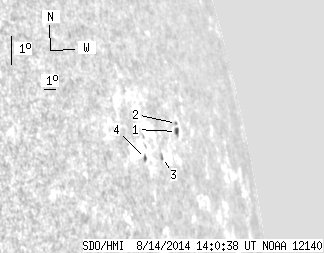

SDO HMI 2014-08-14 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.43 | 8.83 | 4.19 | 15.01 | 13.33 | 165.03 | 74.08 | 281.97 | 0.9574 | -200.3 | -160.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.62 | 3.25 | 2.98 | 5.97 | 13.54 | 166.38 | 75.43 | 282.26 | 0.9641 | -281.4 | -136.0 | |
| 0.00 | 1.08 | 0.00 | 2.01 | 13.76 | 166.60 | 75.64 | 282.50 | 0.9650 | -244.0 | -229.1 | |
| 0.00 | 2.25 | 0.00 | 3.66 | 12.96 | 164.24 | 73.28 | 281.54 | 0.9539 | -389.0 | -314.0 | |
| 0.81 | 2.25 | 1.21 | 3.37 | 13.11 | 162.56 | 71.61 | 281.62 | 0.9449 | 191.6 | 129.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
