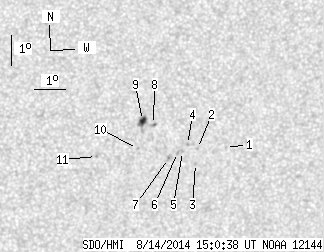

SDO HMI 2014-08-14 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.79 | 20.80 | 2.10 | 11.61 | -17.13 | 103.89 | 13.48 | 209.12 | 0.4594 | 252.9 | 144.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.66 | -17.57 | 106.07 | 15.67 | 212.42 | 0.4822 | 688.0 | 521.9 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -17.58 | 105.15 | 14.75 | 210.87 | 0.4748 | 766.0 | 616.7 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -18.08 | 105.13 | 14.72 | 210.27 | 0.4812 | 648.0 | 571.8 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -17.43 | 104.81 | 14.40 | 210.45 | 0.4703 | 839.0 | 724.3 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -17.66 | 104.66 | 14.26 | 209.94 | 0.4722 | 959.0 | 762.2 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -17.69 | 104.50 | 14.10 | 209.63 | 0.4713 | 812.0 | 728.2 | |
| 0.00 | 1.62 | 0.00 | 0.91 | -17.88 | 104.22 | 13.82 | 208.93 | 0.4717 | 754.0 | 577.4 | |
| 0.00 | 1.89 | 0.00 | 1.05 | -16.74 | 103.64 | 13.24 | 209.15 | 0.4521 | -455.0 | -541.9 | |
| 3.79 | 9.01 | 2.10 | 4.99 | -16.59 | 103.28 | 12.87 | 208.63 | 0.4474 | -923.6 | -351.9 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -17.52 | 103.18 | 12.77 | 207.45 | 0.4592 | 763.0 | 620.0 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -17.75 | 101.86 | 11.45 | 204.75 | 0.4534 | -774.0 | -618.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
