SDO HMI 2014-08-14 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.50 | 385.40 | 61.12 | 236.59 | 14.06 | 53.95 | -35.90 | 75.08 | 0.5894 | -62.6 | 57.2 | |
|
previous
or next observation for the same group /

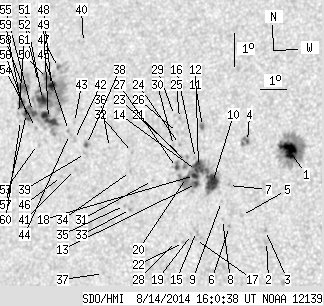

back to the solar disc SDO HMI 2014-08-14 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.12 | 71.20 | 10.40 | 40.86 | 13.96 | 59.87 | -29.98 | 73.57 | 0.5076 | -1121.7 | -503.4 | |
| 0.00 | 2.97 | 0.00 | 1.71 | 11.15 | 59.41 | -30.45 | 79.21 | 0.5081 | -760.0 | -644.3 | |
| 0.00 | 1.35 | 0.00 | 0.78 | 11.48 | 59.33 | -30.52 | 78.57 | 0.5098 | -895.0 | -725.8 | |
| 0.90 | 7.66 | 0.53 | 4.47 | 14.15 | 58.31 | -31.54 | 73.75 | 0.5304 | -986.8 | -710.9 | |
| 0.00 | 1.62 | 0.00 | 0.94 | 11.88 | 58.41 | -31.44 | 77.99 | 0.5239 | -773.0 | -579.3 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 11.52 | 58.02 | -31.83 | 78.75 | 0.5290 | -754.0 | -654.7 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 12.77 | 57.82 | -32.03 | 76.47 | 0.5342 | -742.0 | -650.3 | |
| 0.00 | 1.17 | 0.00 | 0.69 | 11.72 | 57.74 | -32.11 | 78.44 | 0.5334 | -643.0 | -519.5 | |
| 0.00 | 0.27 | 0.00 | 0.16 | 12.27 | 57.63 | -32.22 | 77.45 | 0.5359 | -779.0 | -671.3 | |
| 13.79 | 72.01 | 8.12 | 42.64 | 12.82 | 57.22 | -32.63 | 76.51 | 0.5428 | -1020.6 | -453.1 | |
| 0.99 | 3.42 | 0.59 | 2.04 | 14.51 | 56.58 | -33.27 | 73.65 | 0.5556 | -859.5 | -681.5 | |
| 7.30 | -10.00 | 4.33 | -10.00 | 13.28 | 56.63 | -33.22 | 75.83 | 0.5521 | -860.7 | 999999 | |
| 2.16 | -10.00 | 1.28 | -10.00 | 12.76 | 56.63 | -33.22 | 76.77 | 0.5510 | -859.0 | 999999 | |
| 1.62 | -10.00 | 0.96 | -10.00 | 13.15 | 56.57 | -33.28 | 76.08 | 0.5526 | -937.5 | 999999 | |
| 0.00 | 3.15 | 0.00 | 1.86 | 11.30 | 56.84 | -33.02 | 79.39 | 0.5457 | -740.0 | -521.4 | |
| 0.00 | 1.44 | 0.00 | 0.86 | 13.52 | 56.48 | -33.37 | 75.45 | 0.5547 | -446.0 | -492.1 | |
| 0.00 | 0.72 | 0.00 | 0.43 | 11.06 | 56.83 | -33.02 | 79.84 | 0.5455 | -601.0 | -505.9 | |
| 2.88 | -10.00 | 1.71 | -10.00 | 13.00 | 56.52 | -33.33 | 76.37 | 0.5530 | -900.8 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.37 | 11.20 | 56.66 | -33.19 | 79.60 | 0.5481 | -449.0 | -366.4 | |
| 1.98 | -10.00 | 1.18 | -10.00 | 12.92 | 56.24 | -33.62 | 76.58 | 0.5569 | -488.3 | 999999 | |
| 0.00 | 6.58 | 0.00 | 3.92 | 13.37 | 56.17 | -33.69 | 75.78 | 0.5588 | -637.0 | -573.2 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 10.94 | 56.40 | -33.45 | 80.12 | 0.5515 | -722.0 | -603.2 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 13.55 | 55.95 | -33.90 | 75.53 | 0.5621 | -551.0 | -469.2 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 13.91 | 55.82 | -34.04 | 74.93 | 0.5648 | -647.0 | -538.5 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 14.70 | 55.68 | -34.17 | 73.59 | 0.5685 | -559.0 | -481.8 | |
| 0.00 | 0.99 | 0.00 | 0.60 | 14.27 | 55.68 | -34.17 | 74.34 | 0.5675 | -430.0 | -332.3 | |
| 1.44 | 4.60 | 0.86 | 2.75 | 13.20 | 55.82 | -34.03 | 76.18 | 0.5633 | -633.3 | -485.8 | |
| 0.00 | 1.44 | 0.00 | 0.86 | 10.95 | 56.10 | -33.75 | 80.14 | 0.5558 | -442.0 | -357.2 | |
| 0.00 | 0.81 | 0.00 | 0.49 | 14.78 | 55.48 | -34.38 | 73.51 | 0.5715 | -426.0 | -338.6 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 13.86 | 55.60 | -34.26 | 75.07 | 0.5677 | -454.0 | -363.5 | |
| 0.00 | 1.08 | 0.00 | 0.65 | 12.75 | 54.98 | -34.87 | 77.15 | 0.5741 | 393.0 | 291.2 | |
| 0.00 | 0.90 | 0.00 | 0.55 | 13.55 | 54.08 | -35.77 | 75.96 | 0.5879 | -528.0 | -448.0 | |
| 0.00 | 1.35 | 0.00 | 0.82 | 11.81 | 54.28 | -35.57 | 78.89 | 0.5824 | 847.0 | 680.2 | |
| 0.00 | 1.17 | 0.00 | 0.72 | 12.97 | 54.10 | -35.75 | 76.95 | 0.5866 | -394.0 | -357.2 | |
| 0.00 | 0.81 | 0.00 | 0.49 | 11.92 | 54.04 | -35.81 | 78.74 | 0.5860 | 627.0 | 494.6 | |
| 0.00 | 0.72 | 0.00 | 0.45 | 13.64 | 53.17 | -36.68 | 76.00 | 0.6005 | -368.0 | -307.8 | |
| 0.00 | 0.72 | 0.00 | 0.44 | 9.81 | 53.53 | -36.33 | 82.40 | 0.5911 | 563.0 | 446.2 | |
| 1.08 | 2.88 | 0.68 | 1.80 | 13.68 | 52.26 | -37.59 | 76.13 | 0.6127 | 837.2 | 690.5 | |
| 0.00 | 2.07 | 0.00 | 1.30 | 13.40 | 52.27 | -37.58 | 76.58 | 0.6121 | 711.0 | 505.0 | |
| 0.00 | 0.72 | 0.00 | 0.46 | 16.78 | 51.49 | -38.37 | 71.36 | 0.6294 | 653.0 | 513.0 | |
| 0.00 | 0.90 | 0.00 | 0.57 | 12.89 | 51.97 | -37.88 | 77.46 | 0.6154 | 701.0 | 560.4 | |
| 0.00 | 2.25 | 0.00 | 1.42 | 13.80 | 51.76 | -38.09 | 76.03 | 0.6196 | 466.0 | 314.6 | |
| 0.00 | 0.90 | 0.00 | 0.57 | 14.31 | 51.66 | -38.19 | 75.22 | 0.6218 | 617.0 | 530.9 | |
| 0.00 | 1.17 | 0.00 | 0.74 | 13.93 | 51.54 | -38.31 | 75.85 | 0.6228 | 728.0 | 593.5 | |
| 0.00 | 1.08 | 0.00 | 0.68 | 14.05 | 51.47 | -38.38 | 75.68 | 0.6238 | 682.0 | 630.1 | |
| 0.00 | 0.81 | 0.00 | 0.51 | 12.64 | 51.46 | -38.39 | 77.95 | 0.6219 | 663.0 | 528.8 | |
| 0.72 | 9.82 | 0.46 | 6.29 | 15.94 | 50.66 | -39.19 | 72.87 | 0.6380 | 689.8 | 468.3 | |
| 5.23 | 162.05 | 3.36 | 104.34 | 15.38 | 50.51 | -39.34 | 73.79 | 0.6388 | 1067.8 | 579.0 | |
| 11.27 | -48.00 | 7.21 | -48.00 | 14.36 | 50.61 | -39.25 | 75.35 | 0.6357 | 961.6 | 999999 | |
| 2.52 | -48.00 | 1.63 | -48.00 | 15.58 | 50.30 | -39.55 | 73.53 | 0.6419 | 679.9 | 999999 | |
| 7.66 | -48.00 | 4.93 | -48.00 | 14.92 | 50.24 | -39.61 | 74.55 | 0.6414 | 1002.1 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.29 | 15.43 | 49.96 | -39.89 | 73.83 | 0.6459 | 357.0 | 369.0 | |
| 0.00 | 0.54 | 0.00 | 0.35 | 13.54 | 50.33 | -39.53 | 76.69 | 0.6381 | 496.0 | 528.3 | |
| 0.00 | 1.08 | 0.00 | 0.70 | 14.05 | 50.14 | -39.71 | 75.92 | 0.6412 | 365.0 | 375.8 | |
| 4.78 | -48.00 | 3.09 | -48.00 | 14.53 | 49.92 | -39.93 | 75.22 | 0.6449 | 835.0 | 999999 | |
| 1.89 | -48.00 | 1.23 | -48.00 | 14.31 | 49.80 | -40.05 | 75.59 | 0.6460 | 668.8 | 999999 | |
| 3.61 | -48.00 | 2.34 | -48.00 | 14.45 | 49.69 | -40.16 | 75.39 | 0.6477 | 712.0 | 999999 | |
| 5.59 | -48.00 | 3.65 | -48.00 | 15.23 | 49.39 | -40.46 | 74.25 | 0.6529 | 658.0 | 999999 | |
| 3.97 | -48.00 | 2.58 | -48.00 | 14.71 | 49.42 | -40.43 | 75.04 | 0.6515 | 618.0 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.59 | 14.22 | 49.49 | -40.36 | 75.78 | 0.6499 | 305.0 | 298.1 | |
| 0.00 | 1.35 | 0.00 | 0.88 | 14.43 | 49.36 | -40.49 | 75.48 | 0.6518 | 328.0 | 299.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
