SDO HMI 2014-08-14 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.95 | 320.44 | 38.96 | 220.73 | 14.87 | 133.34 | 44.04 | 284.53 | 0.6959 | -573.8 | -248.2 | |
|
previous
or next observation for the same group /

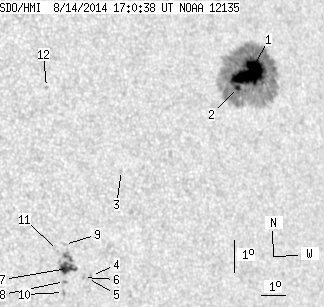

back to the solar disc SDO HMI 2014-08-14 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.33 | 286.84 | 31.65 | 200.07 | 15.36 | 134.15 | 44.85 | 285.19 | 0.7069 | -1170.7 | -326.6 | |
| 2.34 | -1.00 | 1.62 | -1.00 | 14.98 | 133.51 | 44.21 | 284.73 | 0.6988 | -1109.0 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.86 | 12.82 | 128.17 | 38.87 | 282.28 | 0.6284 | 672.0 | 479.5 | |
| 0.00 | 1.53 | 0.00 | 0.95 | 9.73 | 126.49 | 37.20 | 277.41 | 0.6031 | 623.0 | 481.5 | |
| 0.00 | 0.90 | 0.00 | 0.56 | 9.65 | 126.33 | 37.03 | 277.29 | 0.6008 | 591.0 | 568.3 | |
| 0.00 | 1.26 | 0.00 | 0.78 | 9.69 | 126.18 | 36.88 | 277.36 | 0.5987 | 720.0 | 564.1 | |
| 9.28 | 21.36 | 5.69 | 13.09 | 10.00 | 125.60 | 36.31 | 277.93 | 0.5909 | 910.9 | 667.4 | |
| 0.00 | 1.62 | 0.00 | 0.99 | 9.62 | 125.44 | 36.14 | 277.29 | 0.5884 | 913.0 | 803.1 | |
| 0.00 | 1.17 | 0.00 | 0.72 | 10.74 | 125.59 | 36.29 | 279.18 | 0.5913 | 608.0 | 395.2 | |
| 0.00 | 2.34 | 0.00 | 1.43 | 9.29 | 125.36 | 36.06 | 276.73 | 0.5872 | 770.0 | 703.6 | |
| 0.00 | 0.72 | 0.00 | 0.44 | 10.57 | 125.30 | 36.00 | 278.93 | 0.5871 | 608.0 | 555.0 | |
| 0.00 | 1.35 | 0.00 | 0.84 | 15.55 | 125.73 | 36.43 | 287.21 | 0.6011 | 640.0 | 542.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
