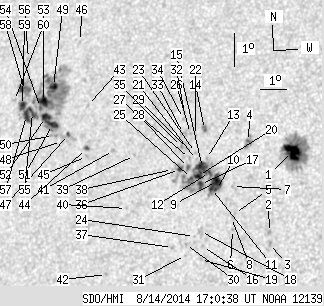

SDO HMI 2014-08-14 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.86 | 412.94 | 60.22 | 251.41 | 14.01 | 54.04 | -35.26 | 75.01 | 0.5805 | -202.5 | 61.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.66 | 79.12 | 10.09 | 45.16 | 13.99 | 59.86 | -29.44 | 73.32 | 0.4999 | -1158.1 | -478.8 | |
| 0.00 | 1.80 | 0.00 | 1.03 | 11.48 | 59.36 | -29.94 | 78.44 | 0.5013 | -946.0 | -756.2 | |
| 0.00 | 2.61 | 0.00 | 1.49 | 11.15 | 59.39 | -29.91 | 79.10 | 0.5001 | -758.0 | -692.0 | |
| 0.45 | 8.56 | 0.26 | 4.97 | 14.21 | 58.23 | -31.07 | 73.49 | 0.5238 | -993.2 | -747.3 | |
| 0.00 | 0.54 | 0.00 | 0.31 | 11.99 | 58.03 | -31.27 | 77.76 | 0.5216 | -707.0 | -551.0 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 11.50 | 58.02 | -31.28 | 78.70 | 0.5209 | -812.0 | -633.9 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 12.80 | 57.85 | -31.45 | 76.26 | 0.5258 | -808.0 | -723.7 | |
| 0.00 | 0.72 | 0.00 | 0.42 | 11.86 | 57.94 | -31.36 | 78.03 | 0.5227 | -640.0 | -569.5 | |
| 9.64 | 76.87 | 5.64 | 45.24 | 12.92 | 57.25 | -32.05 | 76.20 | 0.5347 | -1059.0 | -396.4 | |
| 1.44 | -9.00 | 0.84 | -9.00 | 12.68 | 57.28 | -32.02 | 76.64 | 0.5337 | -1052.2 | 999999 | |
| 2.43 | -9.00 | 1.43 | -9.00 | 12.70 | 57.09 | -32.20 | 76.65 | 0.5364 | -916.1 | 999999 | |
| 1.71 | -9.00 | 1.01 | -9.00 | 13.18 | 56.95 | -32.35 | 75.80 | 0.5395 | -1018.8 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.74 | 13.60 | 56.78 | -32.52 | 75.07 | 0.5429 | -155.0 | -149.1 | |
| 0.36 | 3.06 | 0.21 | 1.81 | 14.48 | 56.56 | -32.74 | 73.54 | 0.5481 | -962.0 | -722.5 | |
| 8.47 | -9.00 | 4.99 | -9.00 | 13.32 | 56.67 | -32.63 | 75.62 | 0.5438 | -871.2 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 10.92 | 57.00 | -32.30 | 79.99 | 0.5349 | -625.0 | -520.4 | |
| 3.24 | -9.00 | 1.91 | -9.00 | 12.79 | 56.67 | -32.63 | 76.57 | 0.5426 | -800.8 | 999999 | |
| 0.00 | 5.68 | 0.00 | 3.33 | 11.37 | 56.87 | -32.43 | 79.17 | 0.5374 | -418.0 | -465.3 | |
| 0.00 | 1.26 | 0.00 | 0.74 | 10.52 | 56.97 | -32.33 | 80.74 | 0.5348 | -561.0 | -400.8 | |
| 5.41 | -9.00 | 3.19 | -9.00 | 13.06 | 56.56 | -32.74 | 76.11 | 0.5448 | -918.7 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 13.55 | 56.41 | -32.89 | 75.27 | 0.5479 | -513.0 | -445.7 | |
| 0.00 | 0.72 | 0.00 | 0.43 | 14.27 | 56.26 | -33.04 | 74.00 | 0.5518 | -687.0 | -500.8 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 13.76 | 56.34 | -32.96 | 74.91 | 0.5494 | -580.0 | -485.1 | |
| 0.00 | 0.63 | 0.00 | 0.37 | 11.20 | 56.67 | -32.63 | 79.51 | 0.5400 | -574.0 | -465.7 | |
| 0.63 | -9.00 | 0.37 | -9.00 | 12.96 | 56.32 | -32.98 | 76.36 | 0.5480 | -682.9 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 14.32 | 56.06 | -33.24 | 73.97 | 0.5546 | -693.0 | -536.8 | |
| 0.00 | 1.62 | 0.00 | 0.96 | 13.56 | 56.15 | -33.15 | 75.32 | 0.5516 | -699.0 | -517.2 | |
| 0.00 | 2.88 | 0.00 | 1.71 | 13.28 | 56.15 | -33.14 | 75.81 | 0.5510 | -753.0 | -605.8 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 13.86 | 56.03 | -33.27 | 74.81 | 0.5540 | -602.0 | -433.2 | |
| 0.00 | 1.26 | 0.00 | 0.74 | 10.94 | 56.37 | -32.93 | 80.04 | 0.5440 | -605.0 | -517.9 | |
| 0.00 | 0.72 | 0.00 | 0.42 | 10.61 | 56.41 | -32.89 | 80.65 | 0.5430 | -588.0 | -490.4 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 14.95 | 55.73 | -33.57 | 72.96 | 0.5609 | -537.0 | -465.5 | |
| 0.00 | 2.61 | 0.00 | 1.56 | 14.31 | 55.80 | -33.50 | 74.08 | 0.5582 | -498.0 | -474.7 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 14.77 | 55.72 | -33.57 | 73.29 | 0.5605 | -637.0 | -569.4 | |
| 0.00 | 1.35 | 0.00 | 0.81 | 13.91 | 55.79 | -33.50 | 74.79 | 0.5574 | -630.0 | -541.1 | |
| 1.62 | 9.46 | 0.96 | 5.63 | 13.20 | 55.83 | -33.47 | 76.04 | 0.5554 | -647.0 | -289.3 | |
| 0.00 | 1.17 | 0.00 | 0.69 | 10.82 | 55.90 | -33.40 | 80.33 | 0.5506 | -496.0 | -455.9 | |
| 0.00 | 0.54 | 0.00 | 0.32 | 13.19 | 55.57 | -33.73 | 76.13 | 0.5590 | -252.0 | -205.2 | |
| 0.00 | 0.90 | 0.00 | 0.55 | 13.52 | 54.07 | -35.22 | 75.89 | 0.5804 | -546.0 | -443.0 | |
| 0.00 | 1.17 | 0.00 | 0.71 | 11.89 | 54.03 | -35.27 | 78.71 | 0.5784 | 616.0 | 450.7 | |
| 0.00 | 2.25 | 0.00 | 1.38 | 13.62 | 53.25 | -36.05 | 75.90 | 0.5919 | -99.0 | -161.4 | |
| 0.00 | 1.08 | 0.00 | 0.66 | 9.85 | 53.54 | -35.75 | 82.30 | 0.5831 | 622.0 | 526.8 | |
| 0.00 | 1.53 | 0.00 | 0.96 | 14.93 | 51.98 | -37.31 | 74.04 | 0.6114 | -360.0 | -187.9 | |
| 0.99 | 2.52 | 0.62 | 1.57 | 13.62 | 52.20 | -37.10 | 76.14 | 0.6061 | 924.6 | 744.8 | |
| 0.00 | 1.62 | 0.00 | 1.01 | 13.37 | 52.24 | -37.06 | 76.53 | 0.6051 | 662.0 | 540.6 | |
| 0.00 | 0.72 | 0.00 | 0.46 | 16.86 | 51.28 | -38.02 | 71.13 | 0.6251 | 564.0 | 503.5 | |
| 0.90 | 6.85 | 0.57 | 4.30 | 13.99 | 51.42 | -37.88 | 75.68 | 0.6172 | 730.4 | 468.5 | |
| 0.00 | 0.63 | 0.00 | 0.40 | 13.76 | 51.18 | -38.12 | 76.09 | 0.6199 | 547.0 | 540.6 | |
| 3.88 | 175.01 | 2.47 | 111.83 | 15.42 | 50.52 | -38.78 | 73.61 | 0.6316 | 1107.7 | 605.1 | |
| 0.00 | 2.61 | 0.00 | 1.65 | 13.92 | 50.83 | -38.47 | 75.90 | 0.6248 | 833.0 | 648.8 | |
| 6.04 | -49.00 | 3.83 | -49.00 | 14.26 | 50.72 | -38.57 | 75.40 | 0.6267 | 996.4 | 999999 | |
| 5.68 | -49.00 | 3.62 | -49.00 | 14.45 | 50.40 | -38.90 | 75.15 | 0.6313 | 1003.9 | 999999 | |
| 6.94 | -49.00 | 4.44 | -49.00 | 14.93 | 50.22 | -39.08 | 74.44 | 0.6345 | 1009.6 | 999999 | |
| 0.99 | -49.00 | 0.63 | -49.00 | 14.74 | 50.14 | -39.16 | 74.75 | 0.6352 | 872.7 | 999999 | |
| 4.60 | -49.00 | 2.95 | -49.00 | 14.56 | 49.85 | -39.45 | 75.08 | 0.6387 | 856.0 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.94 | 16.20 | 49.31 | -39.98 | 72.68 | 0.6487 | 427.0 | 346.9 | |
| 5.86 | -49.00 | 3.77 | -49.00 | 14.46 | 49.63 | -39.67 | 75.29 | 0.6413 | 719.3 | 999999 | |
| 5.68 | -49.00 | 3.68 | -49.00 | 15.24 | 49.37 | -39.92 | 74.13 | 0.6460 | 637.8 | 999999 | |
| 4.24 | -49.00 | 2.74 | -49.00 | 14.75 | 49.40 | -39.90 | 74.88 | 0.6448 | 625.5 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.94 | 14.88 | 49.04 | -40.25 | 74.75 | 0.6496 | 369.0 | 298.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
