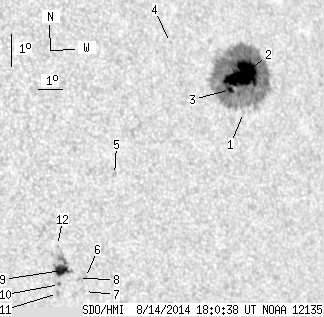

SDO HMI 2014-08-14 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.20 | 314.38 | 40.90 | 218.78 | 14.90 | 133.44 | 44.70 | 284.48 | 0.7040 | -625.4 | -267.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.88 | 14.23 | 133.91 | 45.17 | 283.54 | 0.7094 | -181.0 | -218.2 | |
| 46.68 | 283.31 | 32.91 | 199.38 | 15.35 | 134.17 | 45.43 | 285.08 | 0.7137 | -1135.3 | -330.2 | |
| 3.24 | -2.00 | 2.26 | -2.00 | 14.97 | 133.53 | 44.78 | 284.64 | 0.7057 | -1062.9 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.61 | 16.60 | 131.35 | 42.60 | 287.35 | 0.6819 | -493.0 | -453.5 | |
| 0.00 | 2.25 | 0.00 | 1.44 | 12.76 | 128.12 | 39.38 | 282.10 | 0.6351 | 300.0 | 294.4 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 9.72 | 126.48 | 37.74 | 277.37 | 0.6105 | 571.0 | 504.7 | |
| 0.00 | 0.27 | 0.00 | 0.17 | 9.30 | 126.39 | 37.65 | 276.69 | 0.6091 | 582.0 | 549.7 | |
| 0.00 | 1.26 | 0.00 | 0.78 | 9.71 | 126.21 | 37.47 | 277.37 | 0.6068 | 465.0 | 543.3 | |
| 9.28 | 19.91 | 5.73 | 12.30 | 10.00 | 125.59 | 36.84 | 277.89 | 0.5984 | 933.0 | 636.0 | |
| 0.00 | 1.35 | 0.00 | 0.83 | 9.58 | 125.46 | 36.71 | 277.19 | 0.5963 | 917.0 | 790.7 | |
| 0.00 | 2.16 | 0.00 | 1.33 | 9.32 | 125.35 | 36.60 | 276.75 | 0.5947 | 749.0 | 669.5 | |
| 0.00 | 0.72 | 0.00 | 0.44 | 10.77 | 125.54 | 36.80 | 279.18 | 0.5983 | 303.0 | 405.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
