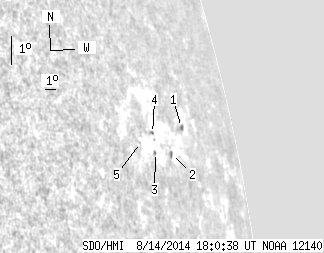

SDO HMI 2014-08-14 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.65 | 0.00 | 14.27 | 13.33 | 164.41 | 75.66 | 282.06 | 0.9648 | 31.8 | -88.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.43 | 0.00 | 5.13 | 13.55 | 166.32 | 77.57 | 282.39 | 0.9731 | -353.0 | -206.7 | |
| 0.00 | 2.16 | 0.00 | 4.02 | 12.92 | 164.32 | 75.57 | 281.63 | 0.9649 | -383.0 | -352.3 | |
| 0.00 | 1.62 | 0.00 | 2.72 | 13.18 | 162.61 | 73.86 | 281.79 | 0.9568 | 225.0 | 181.4 | |
| 0.00 | 1.17 | 0.00 | 1.98 | 13.75 | 162.75 | 74.01 | 282.40 | 0.9573 | 322.0 | 300.5 | |
| 0.00 | 0.27 | 0.00 | 0.42 | 13.63 | 161.32 | 72.58 | 282.21 | 0.9501 | 348.0 | 304.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
