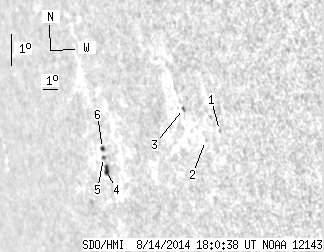

SDO HMI 2014-08-14 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.76 | 12.88 | 7.47 | 15.97 | -6.37 | 23.48 | -65.27 | 99.93 | 0.9168 | -119.0 | -39.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 1.33 | -4.97 | 30.05 | -58.69 | 99.71 | 0.8656 | 489.0 | 346.5 | |
| 0.00 | 0.54 | 0.00 | 0.55 | -5.37 | 29.15 | -59.60 | 99.97 | 0.8738 | 575.0 | 484.8 | |
| 0.45 | 1.53 | 0.47 | 1.60 | -4.50 | 27.92 | -60.82 | 98.75 | 0.8826 | 434.6 | 441.7 | |
| 3.42 | 5.41 | 4.51 | 7.13 | -7.04 | 22.01 | -66.73 | 100.37 | 0.9285 | -423.3 | -282.1 | |
| 0.63 | 1.53 | 0.83 | 2.03 | -6.65 | 21.89 | -66.86 | 99.94 | 0.9288 | -430.0 | -257.1 | |
| 1.26 | 2.52 | 1.66 | 3.33 | -6.37 | 21.89 | -66.86 | 99.64 | 0.9285 | -411.5 | -312.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
