SDO HMI 2014-08-14 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.29 | 93.05 | 42.49 | 106.95 | 16.08 | 22.88 | -65.31 | 75.29 | 0.9038 | -22.1 | 125.3 | |
|
previous
or next observation for the same group /

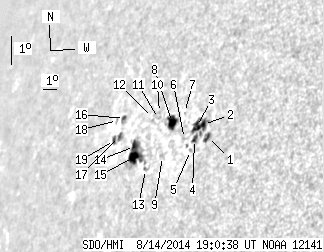

back to the solar disc SDO HMI 2014-08-14 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.34 | 5.14 | 2.41 | 5.28 | 16.48 | 26.35 | -61.85 | 74.80 | 0.8780 | -639.8 | -562.6 | |
| 3.42 | 17.57 | 3.57 | 18.43 | 16.84 | 25.87 | -62.32 | 74.41 | 0.8819 | -678.7 | -379.8 | |
| 5.32 | -2.00 | 5.62 | -2.00 | 16.73 | 25.44 | -62.75 | 74.54 | 0.8852 | -367.0 | 999999 | |
| 1.89 | 3.87 | 1.99 | 4.08 | 16.33 | 25.53 | -62.66 | 74.99 | 0.8844 | -489.5 | -365.7 | |
| 0.00 | 1.08 | 0.00 | 1.14 | 15.98 | 25.45 | -62.74 | 75.39 | 0.8850 | -422.0 | -364.8 | |
| 0.00 | 1.08 | 0.00 | 1.16 | 16.30 | 24.85 | -63.34 | 75.04 | 0.8897 | 233.0 | 237.3 | |
| 0.00 | 0.45 | 0.00 | 0.49 | 17.07 | 24.39 | -63.80 | 74.18 | 0.8934 | -232.0 | -155.8 | |
| 8.92 | 12.25 | 9.97 | 13.70 | 16.69 | 23.74 | -64.45 | 74.62 | 0.8981 | -412.3 | -135.7 | |
| 0.00 | 1.71 | 0.00 | 1.92 | 15.61 | 23.66 | -64.53 | 75.82 | 0.8987 | 254.0 | 300.7 | |
| 0.00 | 0.99 | 0.00 | 1.15 | 16.89 | 22.63 | -65.56 | 74.41 | 0.9062 | 314.0 | 298.2 | |
| 0.00 | 1.89 | 0.00 | 2.19 | 16.71 | 22.67 | -65.52 | 74.62 | 0.9058 | 282.0 | 307.1 | |
| 0.00 | 0.81 | 0.00 | 0.96 | 16.69 | 22.21 | -65.98 | 74.64 | 0.9091 | 101.0 | 137.2 | |
| 0.00 | 2.25 | 0.00 | 2.61 | 15.10 | 22.68 | -65.51 | 76.39 | 0.9058 | 599.0 | 474.0 | |
| 3.15 | 32.35 | 3.83 | 38.88 | 15.70 | 21.44 | -66.75 | 75.73 | 0.9144 | 534.3 | 371.9 | |
| 8.20 | -14.00 | 9.89 | -14.00 | 15.37 | 21.57 | -66.62 | 76.09 | 0.9135 | 489.9 | 999999 | |
| 1.08 | 3.42 | 1.38 | 4.38 | 16.44 | 20.09 | -68.10 | 74.91 | 0.9233 | 405.0 | 420.2 | |
| 1.53 | 3.24 | 1.96 | 4.14 | 15.87 | 20.08 | -68.12 | 75.53 | 0.9234 | 537.7 | 452.6 | |
| 0.00 | 1.89 | 0.00 | 2.47 | 16.32 | 19.57 | -68.62 | 75.04 | 0.9266 | 18.0 | -1.7 | |
| 1.44 | 3.06 | 1.87 | 3.97 | 15.71 | 19.76 | -68.43 | 75.70 | 0.9255 | 173.4 | 63.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
