SDO HMI 2014-08-14 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.59 | 11.44 | 5.92 | 14.08 | -6.43 | 23.11 | -65.08 | 100.03 | 0.9160 | -158.9 | -109.3 | |
|
previous
or next observation for the same group /

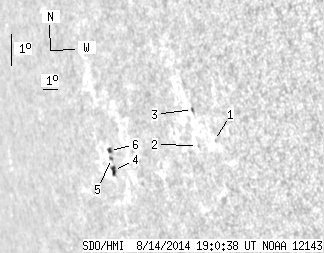

back to the solar disc SDO HMI 2014-08-14 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.54 | -5.34 | 29.15 | -59.04 | 100.06 | 0.8691 | 485.0 | 462.5 | |
| 0.00 | 0.72 | 0.00 | 0.74 | -5.61 | 28.07 | -60.12 | 100.13 | 0.8785 | 325.0 | 295.8 | |
| 0.00 | 1.26 | 0.00 | 1.30 | -4.51 | 27.94 | -60.25 | 98.87 | 0.8780 | 426.0 | 441.3 | |
| 2.70 | 4.33 | 3.48 | 5.57 | -7.01 | 22.02 | -66.17 | 100.45 | 0.9249 | -452.5 | -352.0 | |
| 0.54 | 1.71 | 0.70 | 2.21 | -6.65 | 21.96 | -66.23 | 100.05 | 0.9248 | -490.3 | -348.8 | |
| 1.35 | 2.88 | 1.74 | 3.72 | -6.41 | 21.87 | -66.32 | 99.78 | 0.9251 | -422.8 | -338.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
