SDO HMI 2014-08-14 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.20 | 304.54 | 40.94 | 216.34 | 14.95 | 133.51 | 45.87 | 284.40 | 0.7180 | -584.0 | -257.8 | |
|
previous
or next observation for the same group /

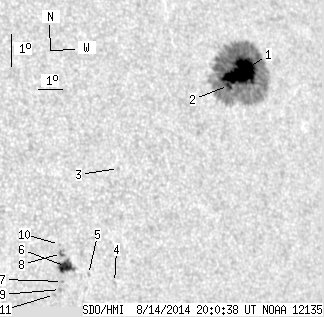

back to the solar disc SDO HMI 2014-08-14 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.68 | 279.32 | 32.83 | 200.51 | 15.36 | 134.16 | 46.52 | 284.94 | 0.7265 | -1121.7 | -310.1 | |
| 3.06 | -1.00 | 2.18 | -1.00 | 15.01 | 133.51 | 45.87 | 284.54 | 0.7185 | -999.0 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.59 | 12.86 | 128.26 | 40.62 | 282.08 | 0.6514 | 710.0 | 535.8 | |
| 0.00 | 0.54 | 0.00 | 0.35 | 9.42 | 127.51 | 39.88 | 276.79 | 0.6392 | 481.0 | 434.7 | |
| 0.00 | 1.44 | 0.00 | 0.91 | 9.74 | 126.52 | 38.88 | 277.33 | 0.6260 | 499.0 | 507.2 | |
| 9.46 | 14.96 | 5.93 | 9.37 | 10.05 | 125.65 | 38.02 | 277.87 | 0.6145 | 870.8 | 618.8 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 9.60 | 125.48 | 37.84 | 277.15 | 0.6118 | 780.0 | 677.5 | |
| 0.00 | 2.88 | 0.00 | 1.80 | 10.45 | 125.56 | 37.92 | 278.54 | 0.6134 | 774.0 | 719.7 | |
| 0.00 | 1.44 | 0.00 | 0.90 | 9.36 | 125.37 | 37.73 | 276.77 | 0.6103 | 859.0 | 719.1 | |
| 0.00 | 0.81 | 0.00 | 0.51 | 10.73 | 125.52 | 37.88 | 279.00 | 0.6130 | 510.0 | 467.3 | |
| 0.00 | 1.26 | 0.00 | 0.78 | 9.23 | 125.12 | 37.48 | 276.56 | 0.6068 | 646.0 | 571.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
